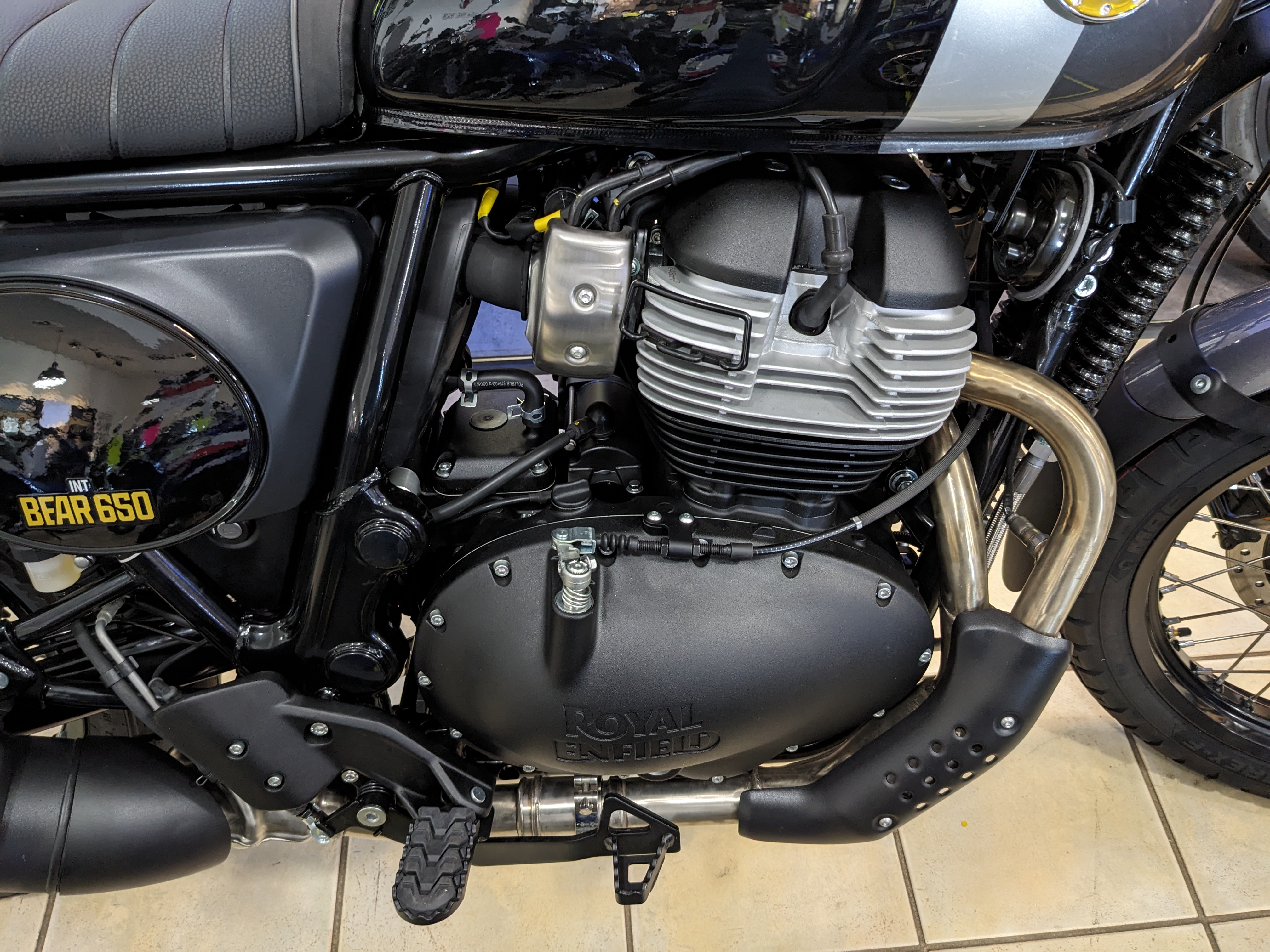

Engine: SOHC, air/oil-cooled parallel twin; 4 valves/cyl.
Displacement: 648cc
Bore x Stroke: 78.0 x 67.8mm
Compression Ratio: 9.5:1
Transmission/Final Drive: 6-speed/chain
Claimed Horsepower: 46.8 hp @ 7,250 rpm
Claimed Torque: 41.7 lb.-ft. @ 5,100 rpm
Fuel System: Electronic fuel injection
Clutch: Wet, multiplate slipper; cable actuated
Engine Management/Ignition: Electronic ignition
Frame: Tubular mild steel, double-cradle
Front Suspension: 43mm Showa inverted fork; 5.1 in. travel
Rear Suspension: Dual outboard shocks; 4.5 in. travel
Front Brake: 2-piston floating caliper, 320mm disc w/ ABS
Rear Brake: 1-piston floating caliper, 270mm disc w/ ABS
Wheels, Front/Rear: Spoked; 19 in./17 in.
Tires, Front/Rear: MRF Nylorex; 100/90-19 / 140/80R-17
Rake/Trail: 26.1°/4.6 in.
Wheelbase: 57.5 in.
Ground Clearance: 7.2 in.
Seat Height: 32.7 in.
Fuel Capacity: 3.6 gal.
Claimed Wet Weight: 476 lb.
