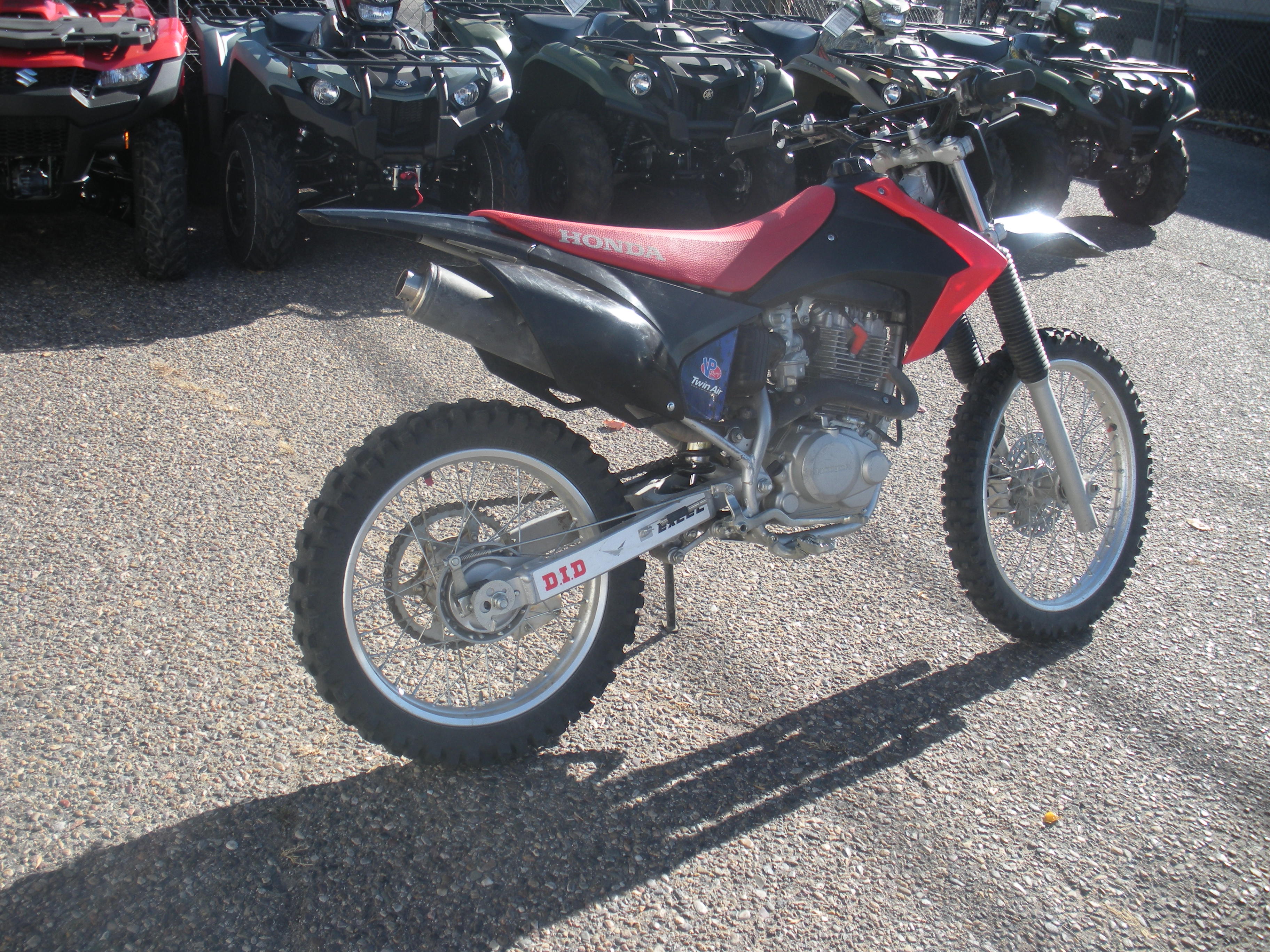

2019 Honda CRF230F

Engine Type: Single-cylinder four-stroke
Displacement: 223cc
Bore and Stroke: 65.5 mm x 66.2 mm
Cooling: Air
Compression Ratio: 9.0:1
Fuel System: 26 mm piston-valve carburetor
Ignition: CD
Front Suspension: 37 mm leading-axle Showa® fork; 9.5 in. travel
Front Brakes: Single 240 mm disc
Front Tire: 80/100-21
Rear Suspension: Pro-Link® Showa single shock with spring-preload adjustability; 9.0 in. travel
Rear Brakes: Drum
Rear Tire: 100/100-18
Dry Weight: Curb Weight: 249 lb.
Fuel Capacity: 1.9 gal., including 0.4-gal. reserve
Wheelbase: 54.1 in.
Ground Clearance: 11.7 in.
Seat Height: 34.6 in.
Trail: 112 mm (4.4 in.)
Rake: 27.3 deg.
Transmission: Six-speed
Final Drive: #520 O-ring-sealed chain; 13T/50T
Colors: Red
