Gun Mount

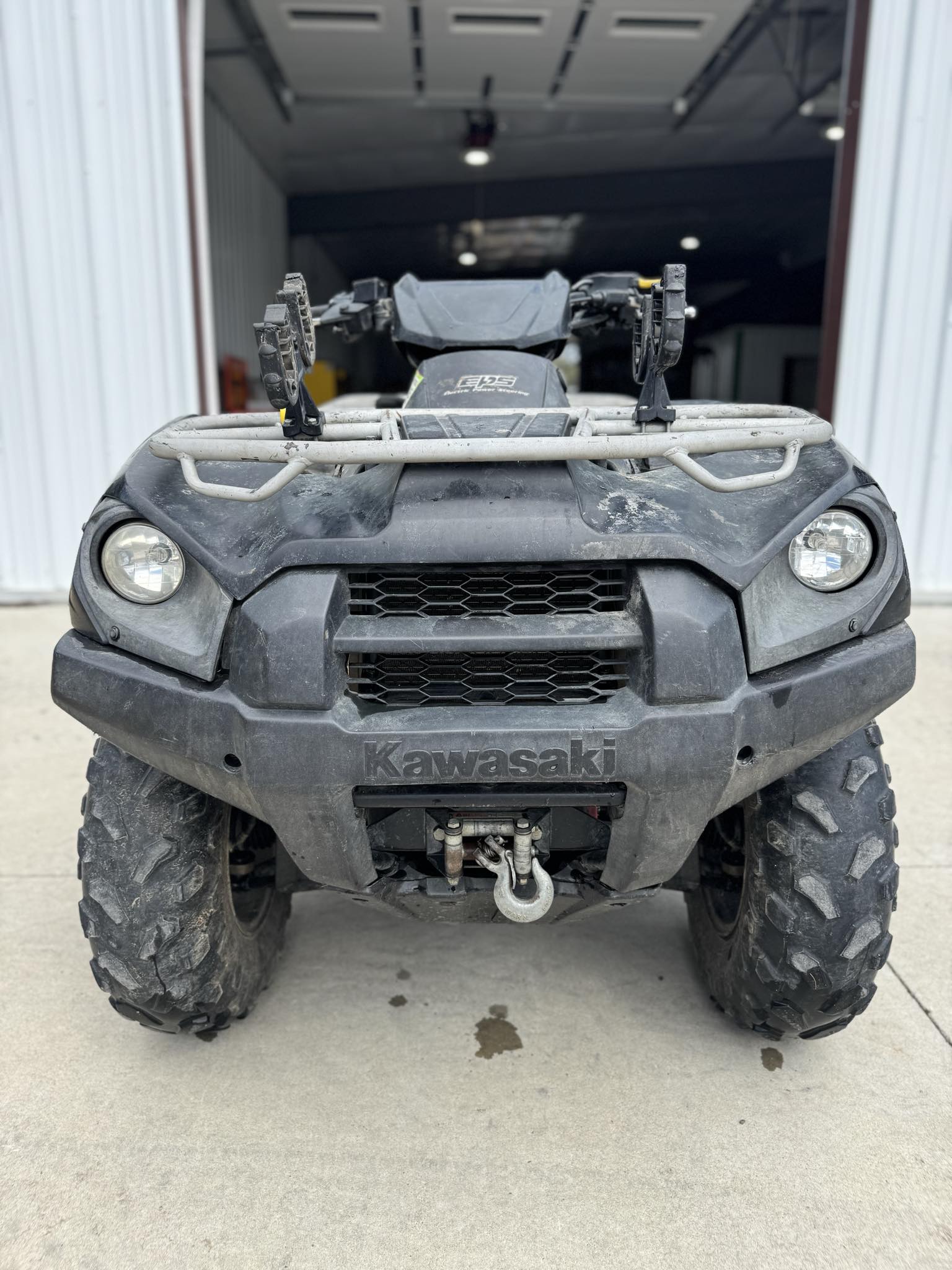

Winch
650 Hours Engine Type: 90-degree, four-stroke V-twin, SOHC, four valves per cylinder
Displacement: 749 cc
Bore x Stroke: 85 x 66 mm
Cylinders: 2
Engine Cooling: Liquid
Fuel System: DFI®; (2) 36 mm Mikuni throttle bodies
Starting System: Electric
Alternator: 33.5A
Front Suspension: Double Wishbone
Front Travel: 6.7 in.
Front Brake Type: Dual hydraulic 200 mm discs with 2-piston calipers
Front Tires: AT25x8-12
Rear Suspension: Fully independent, dual A-arm
Rear Travel: 7.5 in.
Rear Brake Type: Sealed, oil-bathed, multi-disc
Rear Tires: AT25x10-12
Frame: Double-cradle, high-tensile tubular steel
Dry Weight: 694.6 lb.
Front Rack Capacity: 88 lb.
Rear Rack Capacity: 176 lb.
Towing Capacity: 1,250 lb.
Fuel Capacity: 5.0 gal.
Ground Clearance: 9.4 in.
Machine Dimensions (LxWxH): 86.4 in. x 46.5 in. x 48.0 in.
Wheelbase: 50.6 in.
Drive Train: 4x4
Final Drive: Selectable four-wheel drive with Variable Front Differential Control, shaft
Transmission: Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control
Speedometer: Standard
Odometer: Standard
Lighting: 35W headlights, 5W taillight, 21W stoplight
Colors: Scout Green, Super Black
