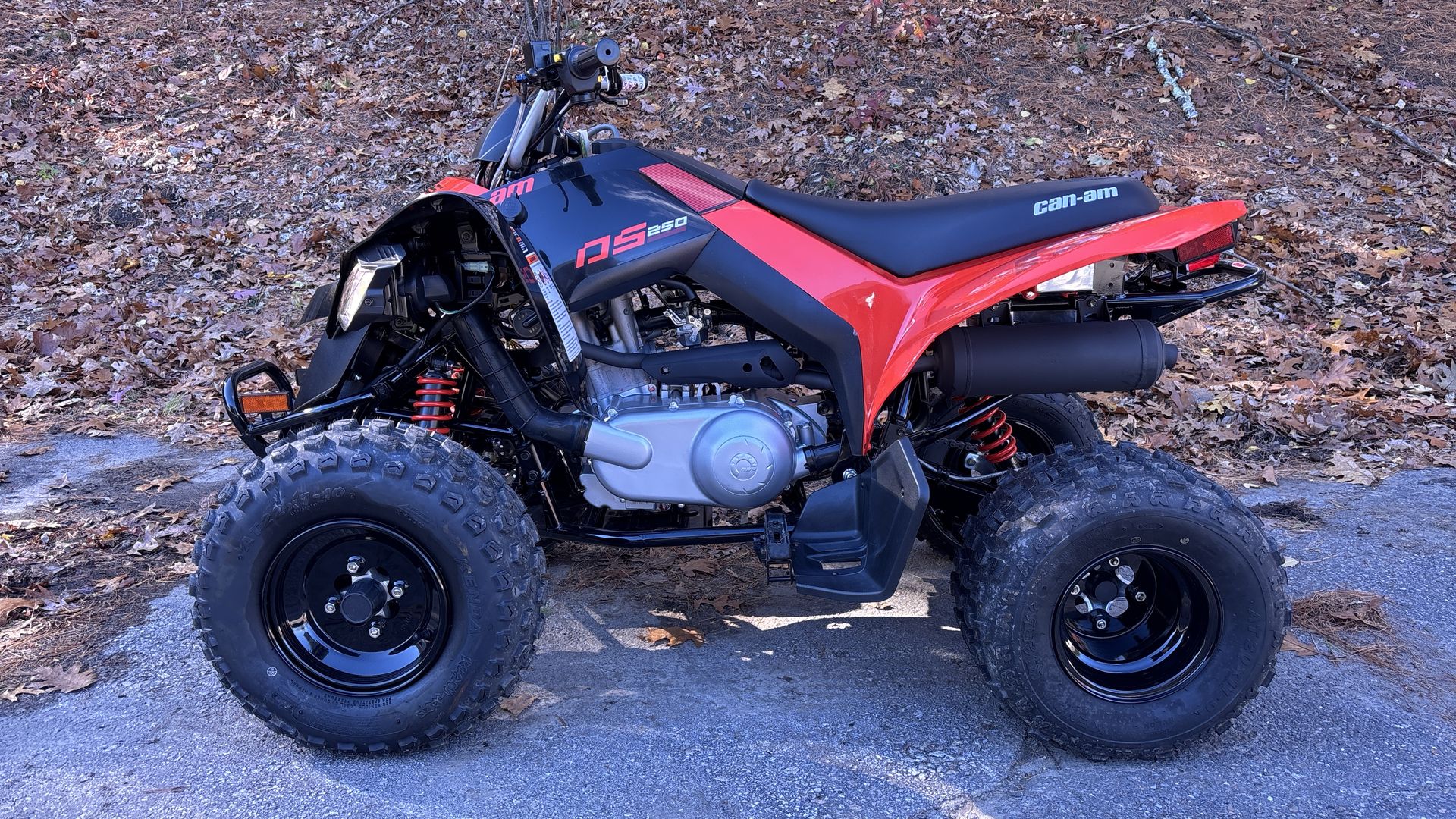

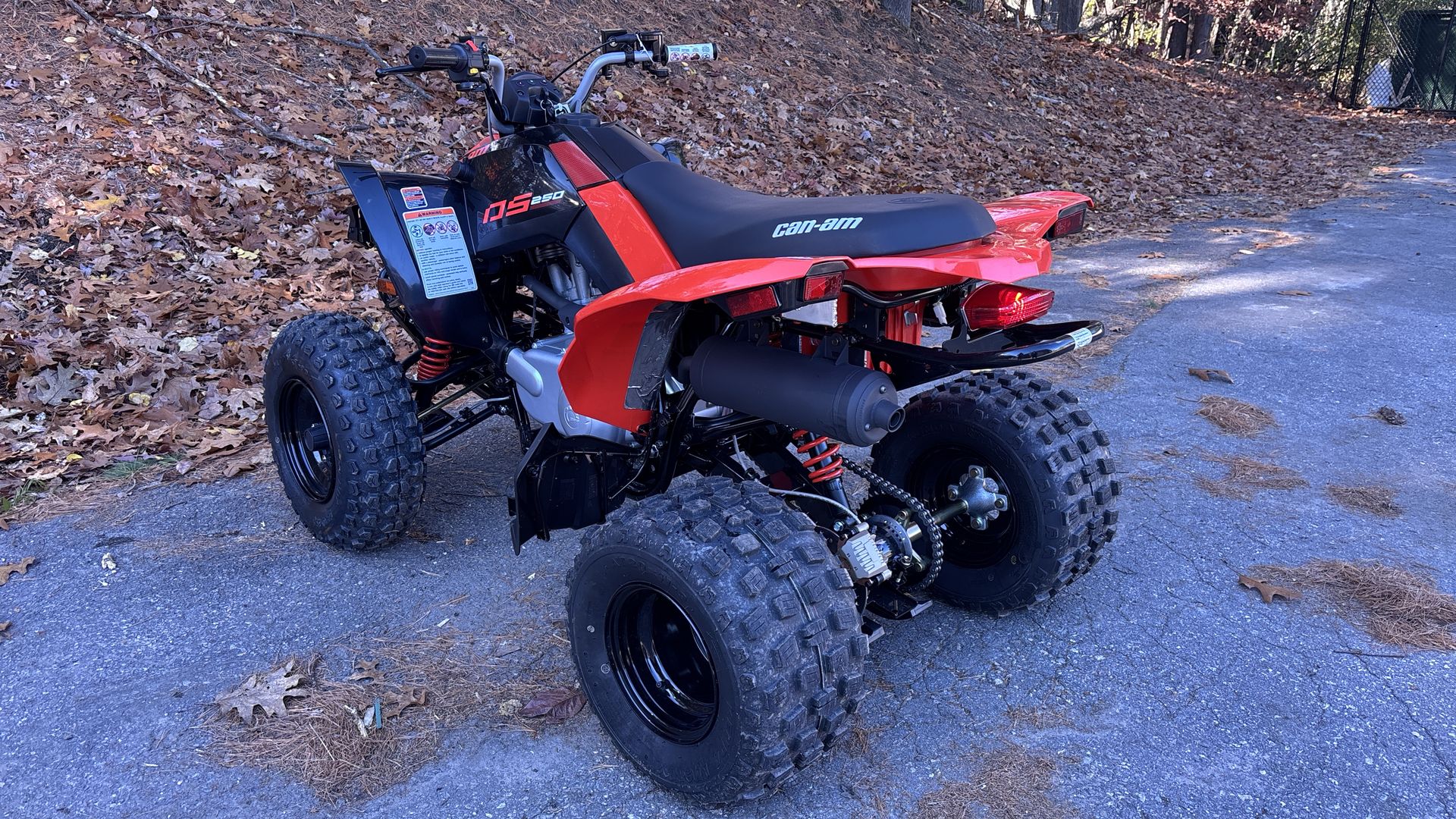

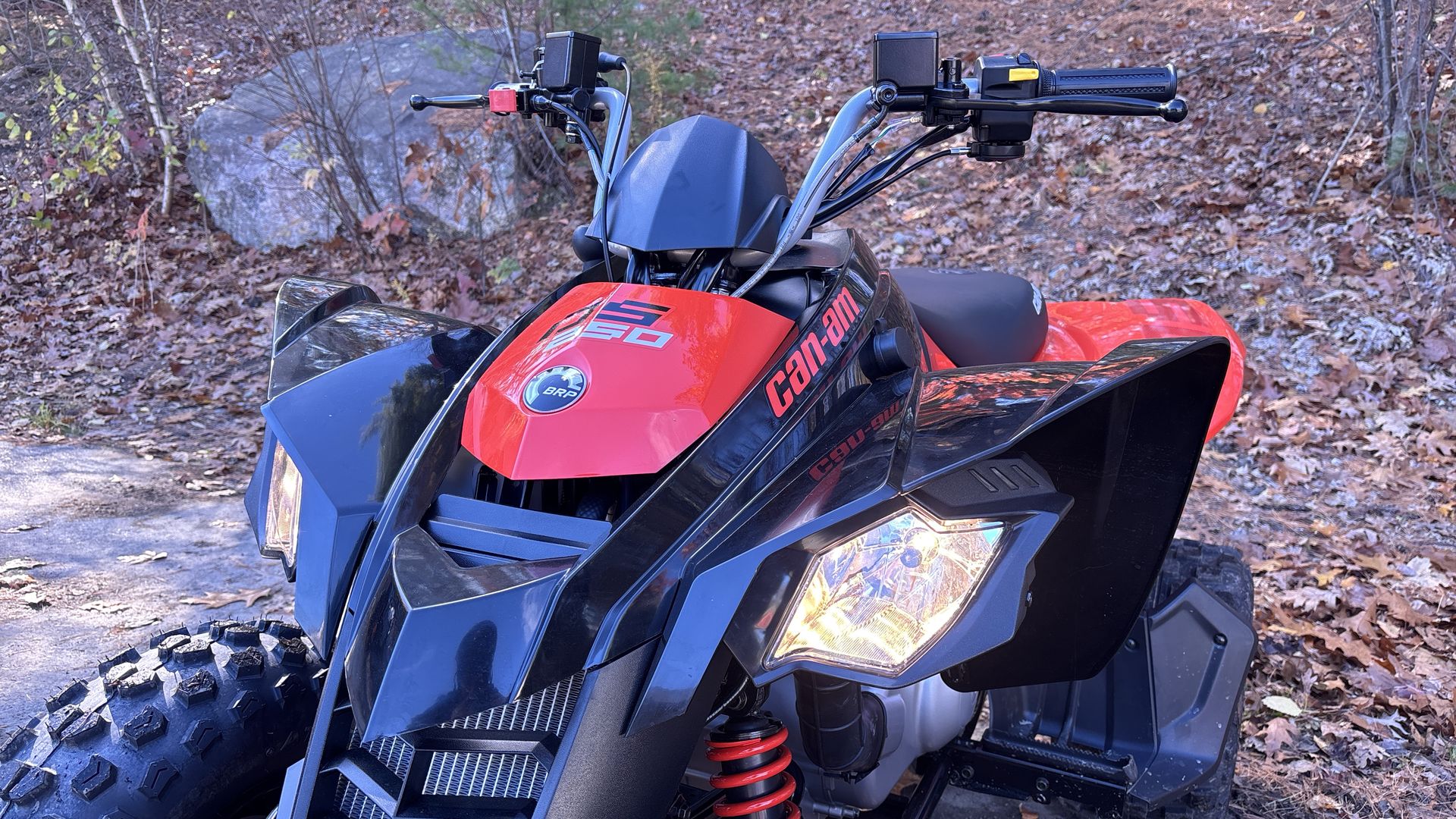

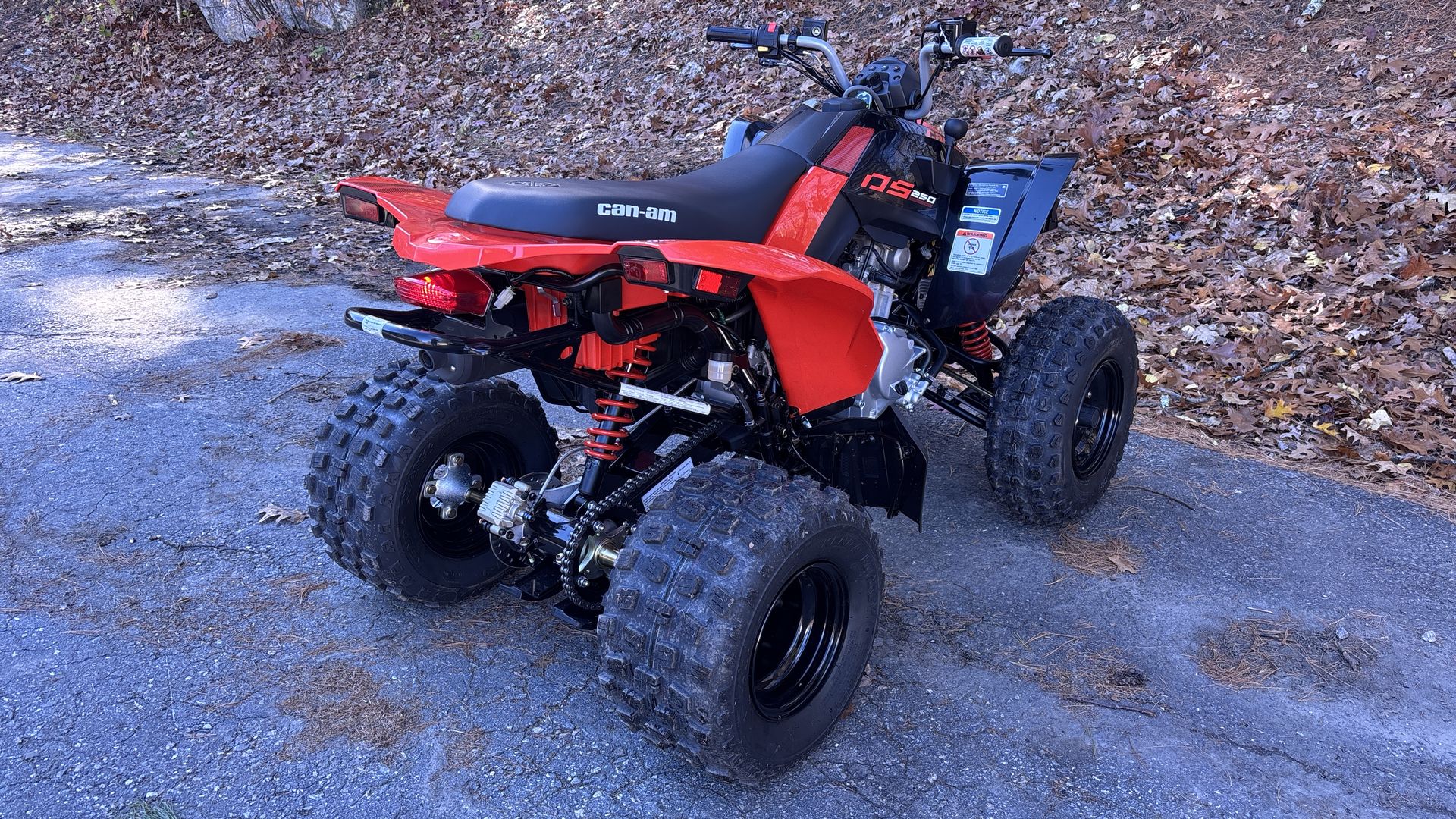

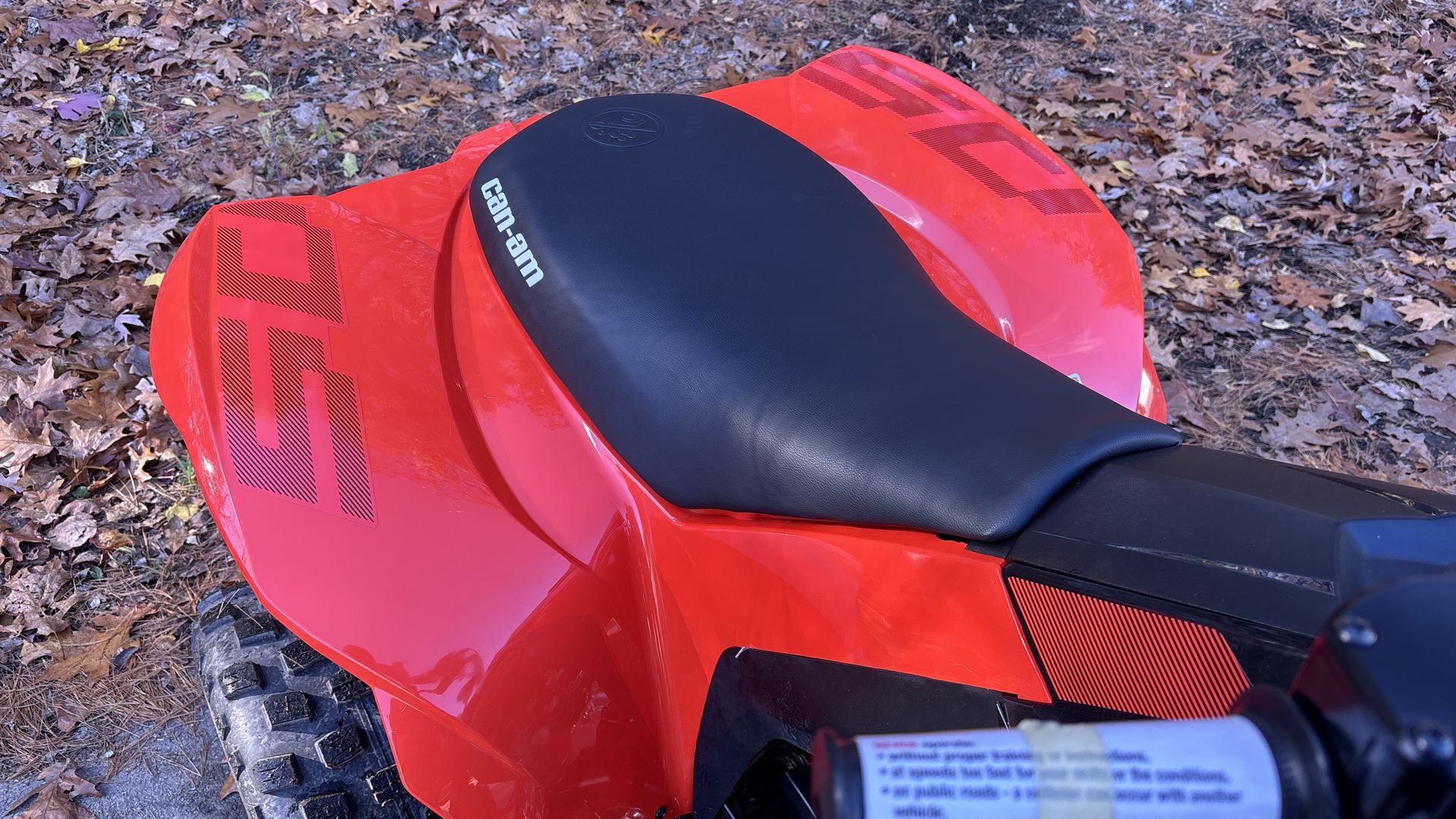

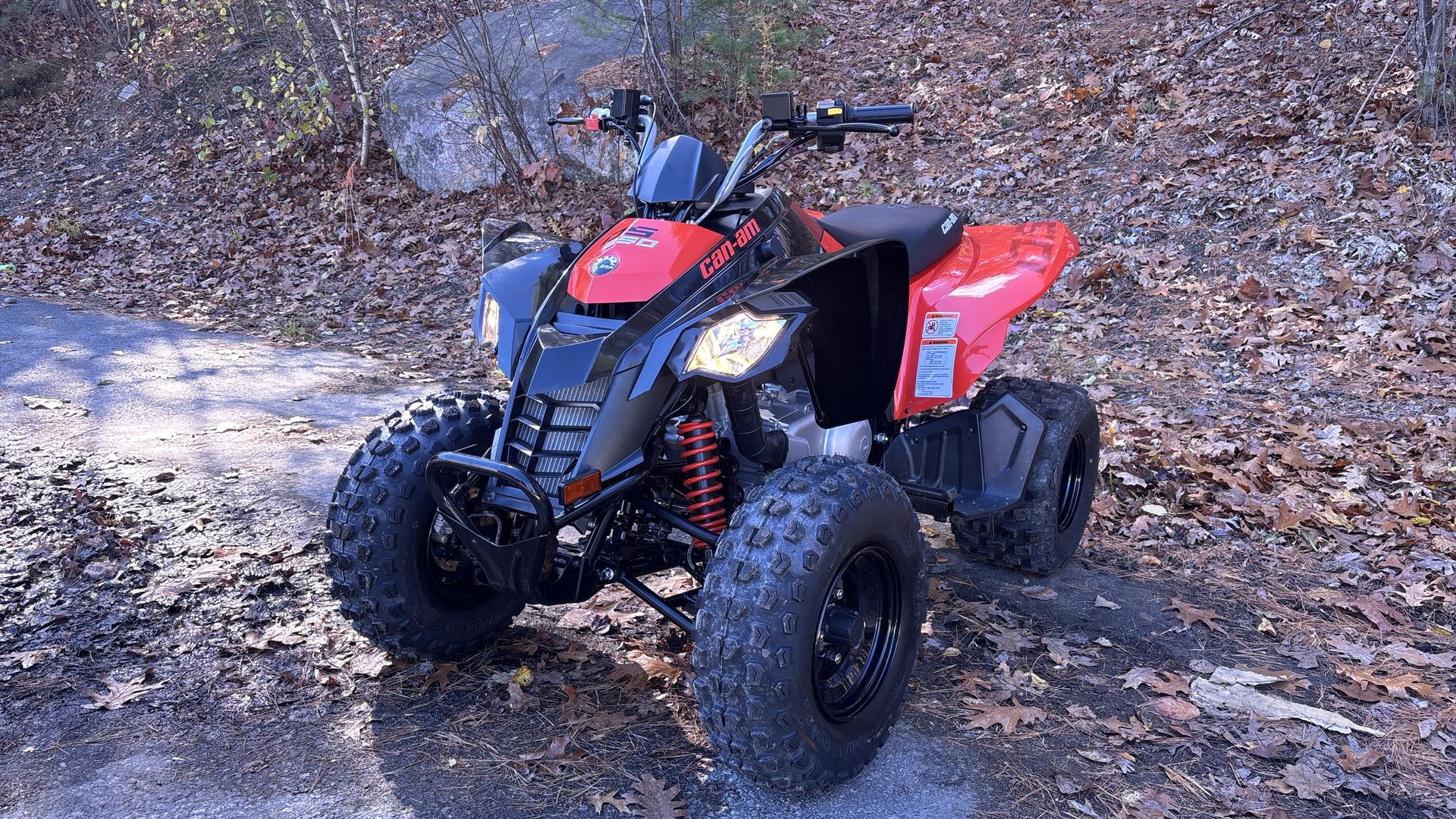

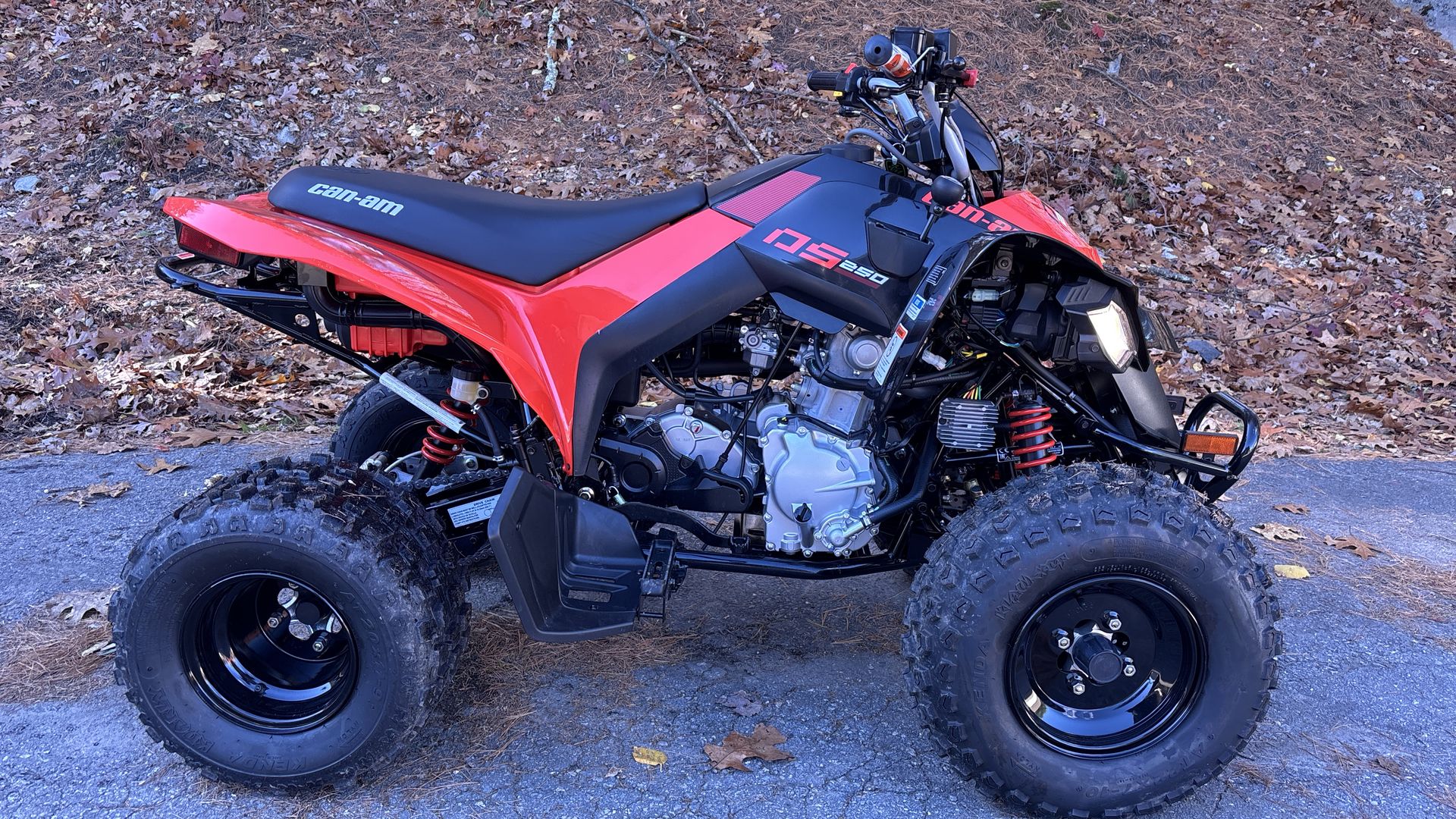

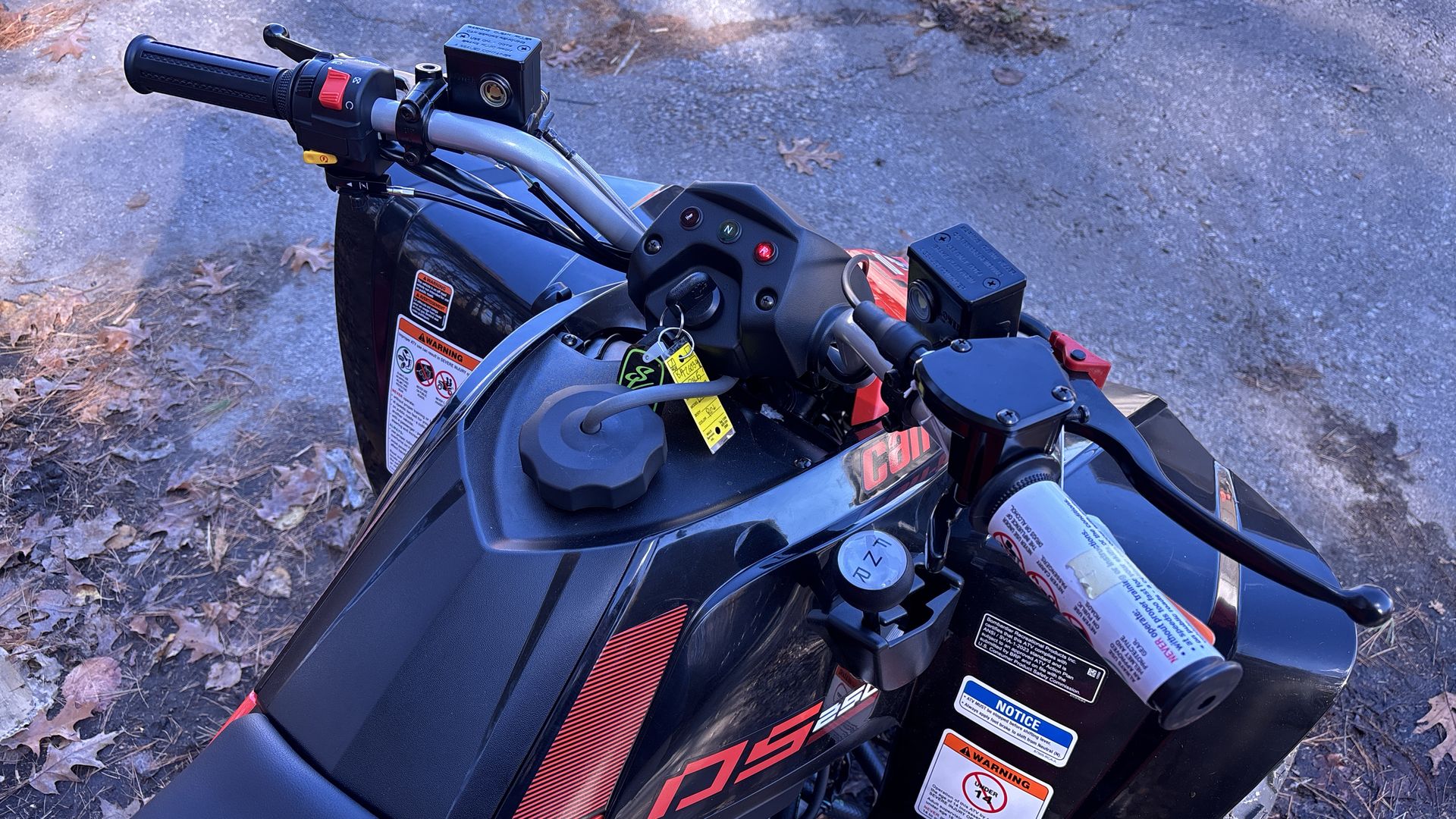

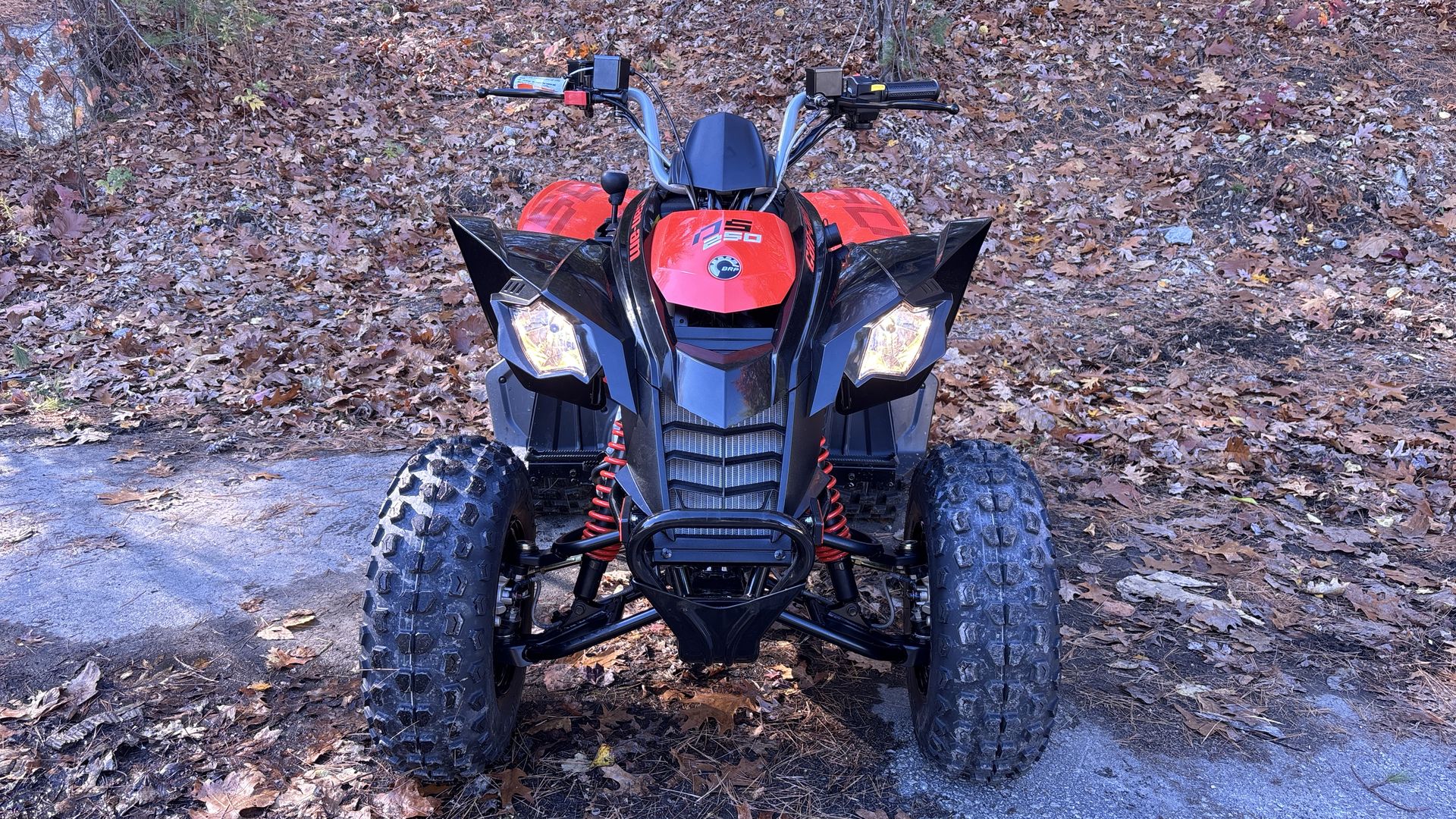

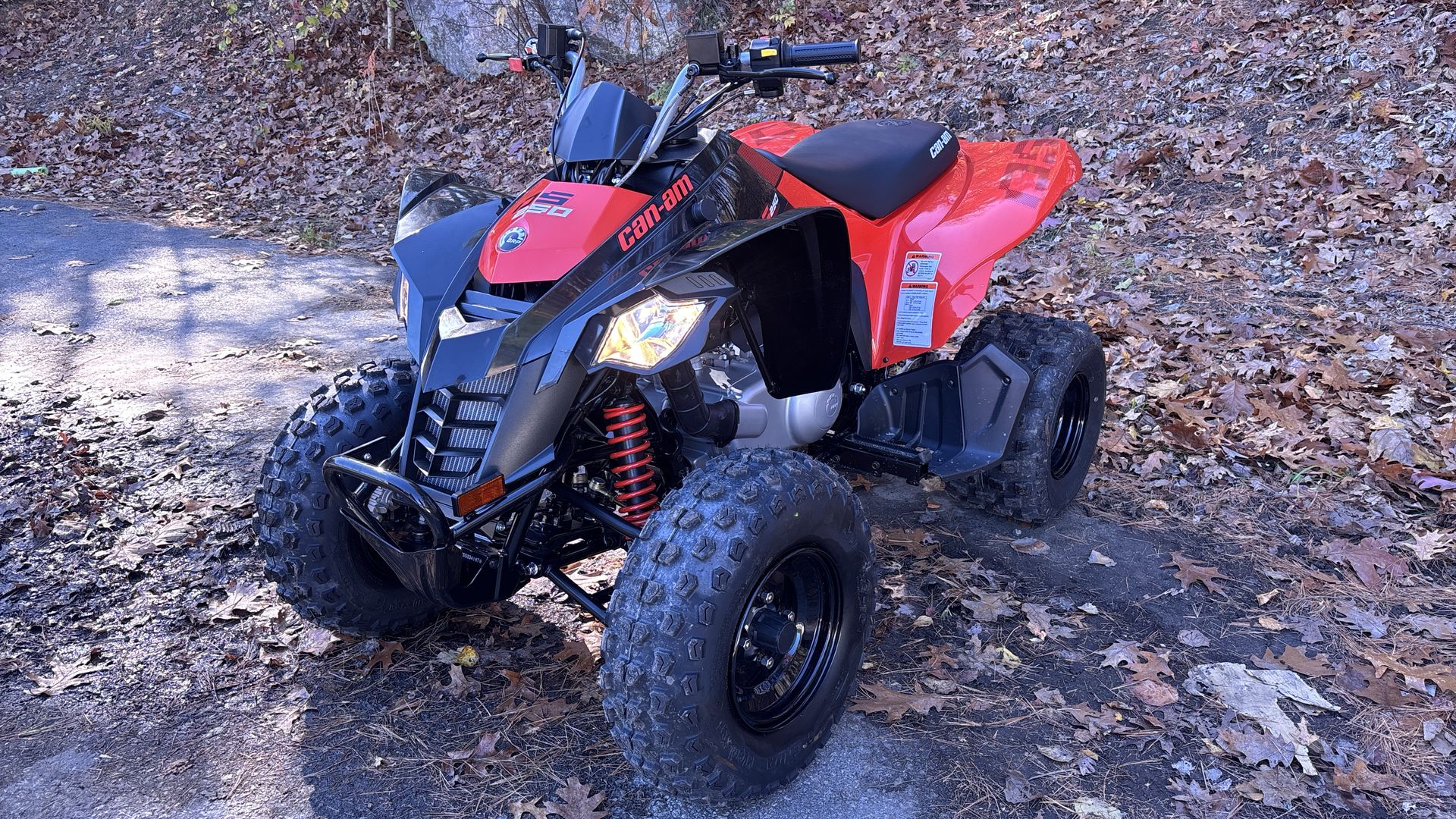

2025 Can-Am DS 250

The 2025 Can-Am DS 250 is a youth ATV with a 250cc, liquid-cooled, 4-stroke single-cylinder engine. It features a Continuously Variable Transmission (CVT) with F/N/R capabilities, a double A-arm front suspension, and a swingarm rear suspension. Key specifications include dual hydraulic disc brakes in the front and a single hydraulic disc brake in the rear, an electric starter with a backup kick-start, and a 3.3-gallon fuel capacity.
Engine and Drivetrain

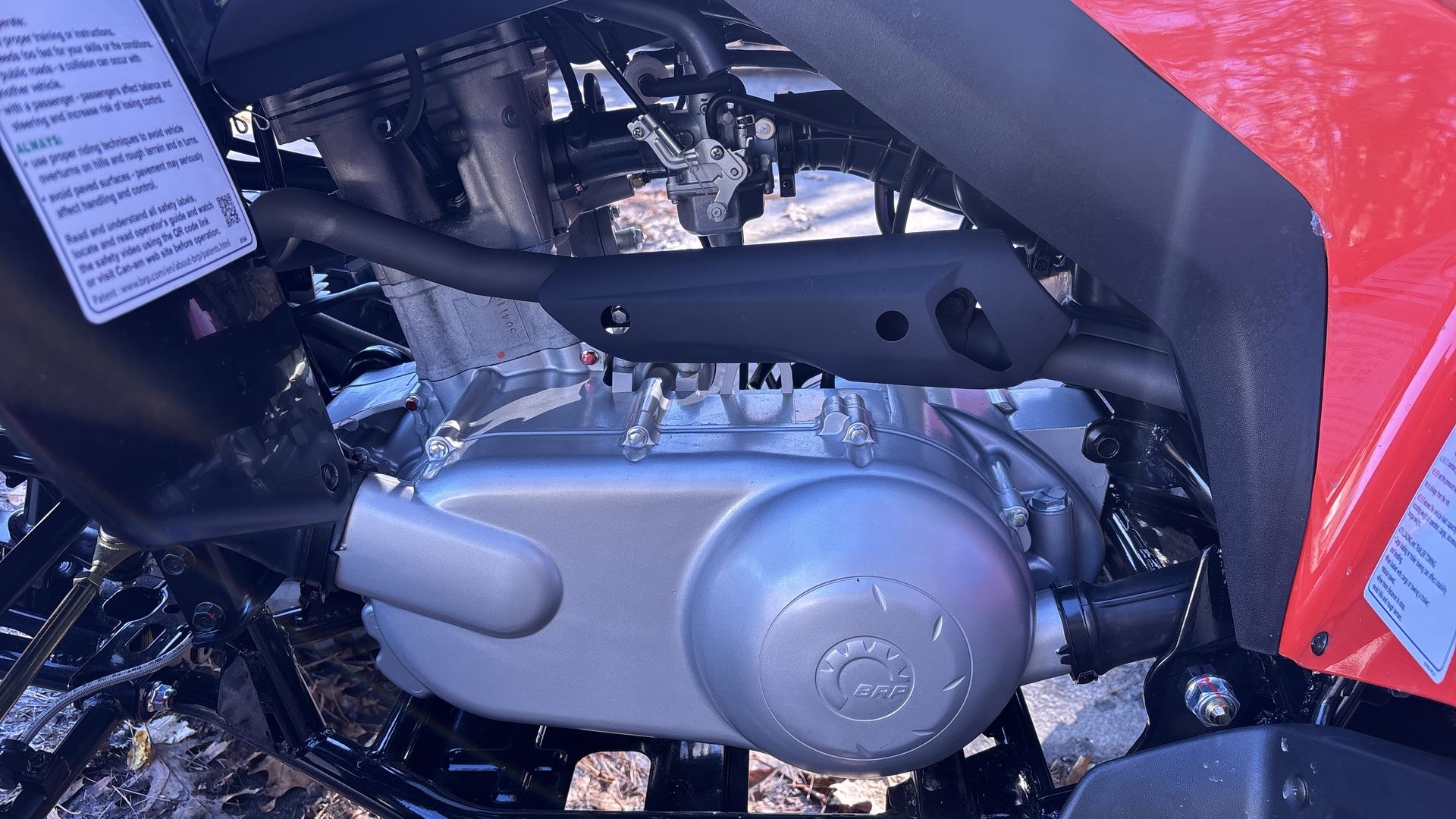

Engine: 250cc, 4-stroke single-cylinder
Cooling: Liquid-cooled

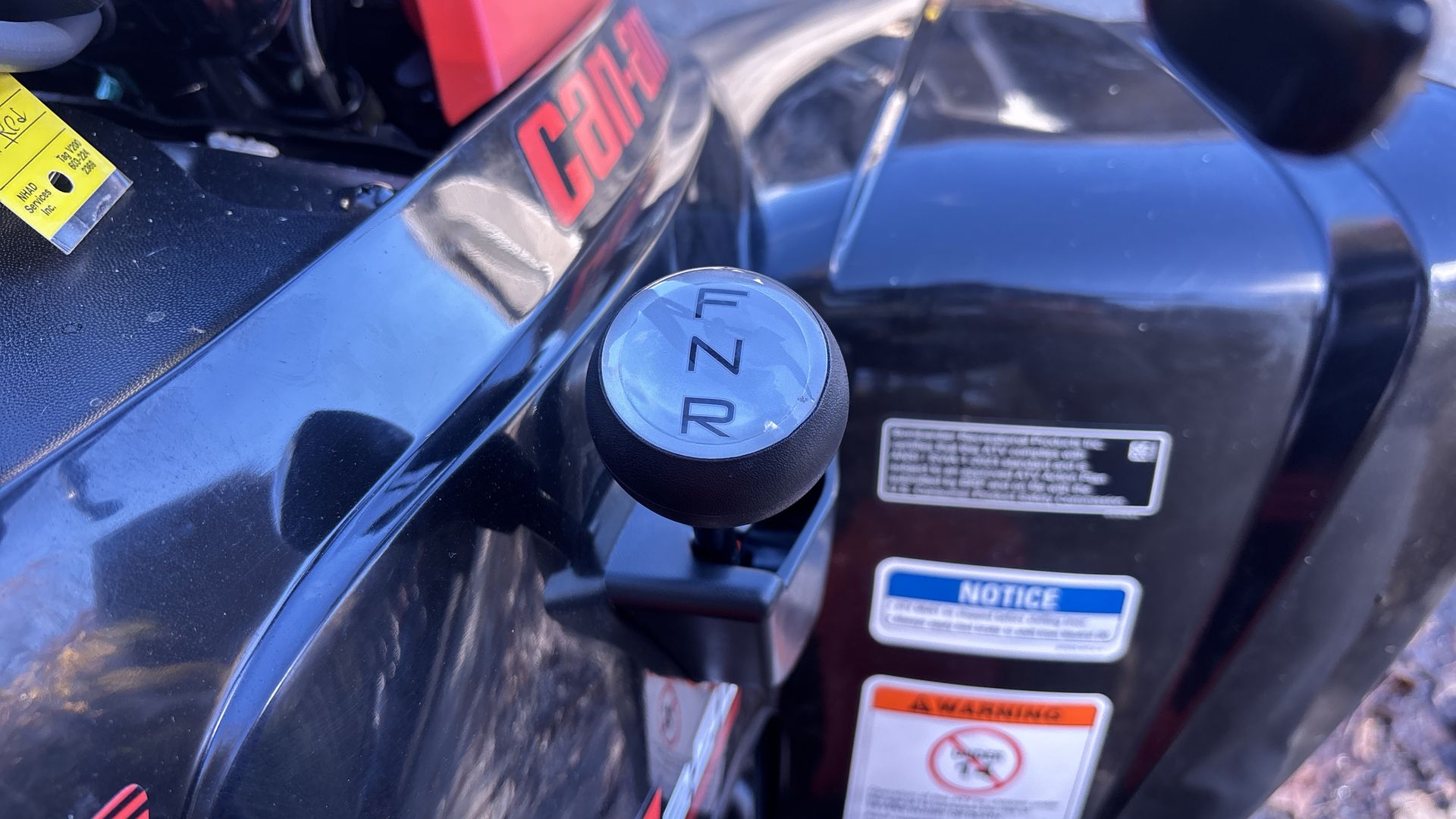

Transmission: CVT with Forward, Neutral, and Reverse (F/N/R)

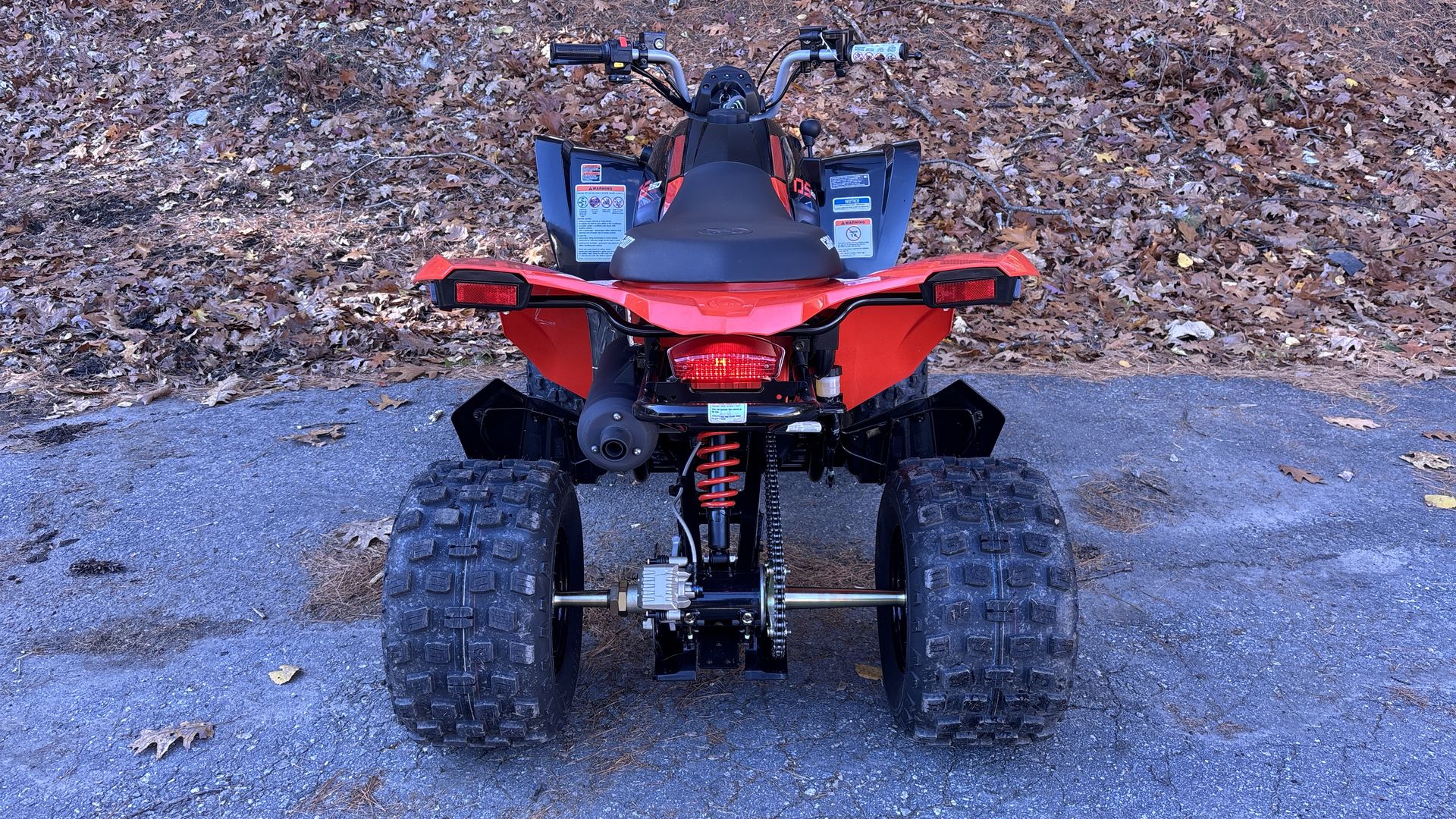

Drivetrain: Chain driven with a solid rear axle
Starter: Electric start with a backup kick-start
Suspension and Brakes
Front Suspension: Double A-arm with 5.5 in. (14 cm) travel and twin-tube shocks

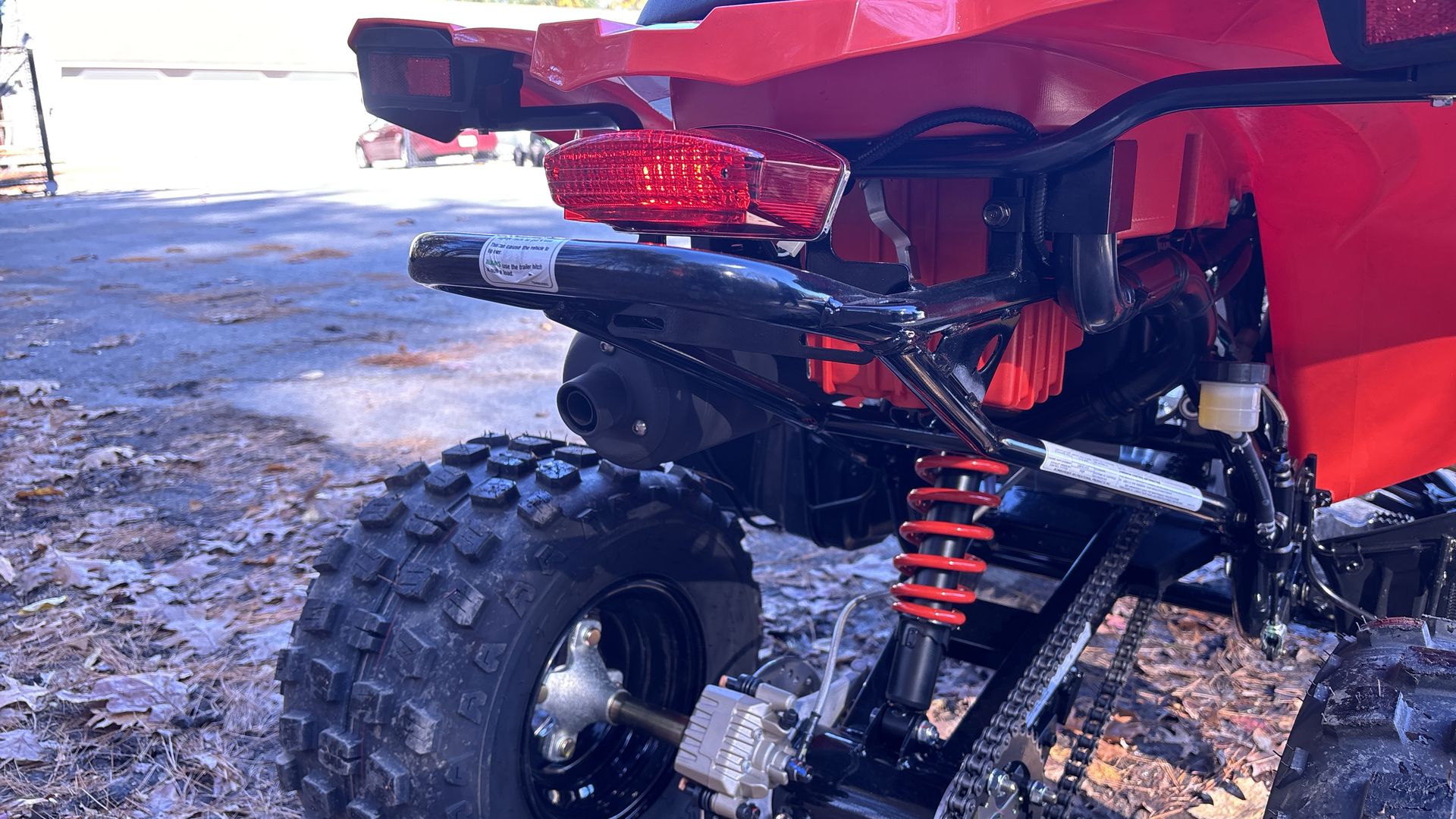

Rear Suspension: Swingarm with 6.7 in. (17 cm) travel and twin-tube shocks
Front Brakes: Dual hydraulic disc brakes
Rear Brakes: Single hydraulic disc brake Engine Type: Single-Cylinder
Displacement: 15.3 cu. in. (250 cc)
Bore x Stroke: Bore: 2.8 in. (71 mm); Stroke: 2.48 in. (63 mm)
Cylinders: 1
Engine Cooling: Liquid
Fuel System: Gas
Starting System: Electric / Kick
Front Suspension: Double A-Arm
Front Travel: 5.5 in. (140 mm)
Front Brake Type: Dual Hydraulic Disc

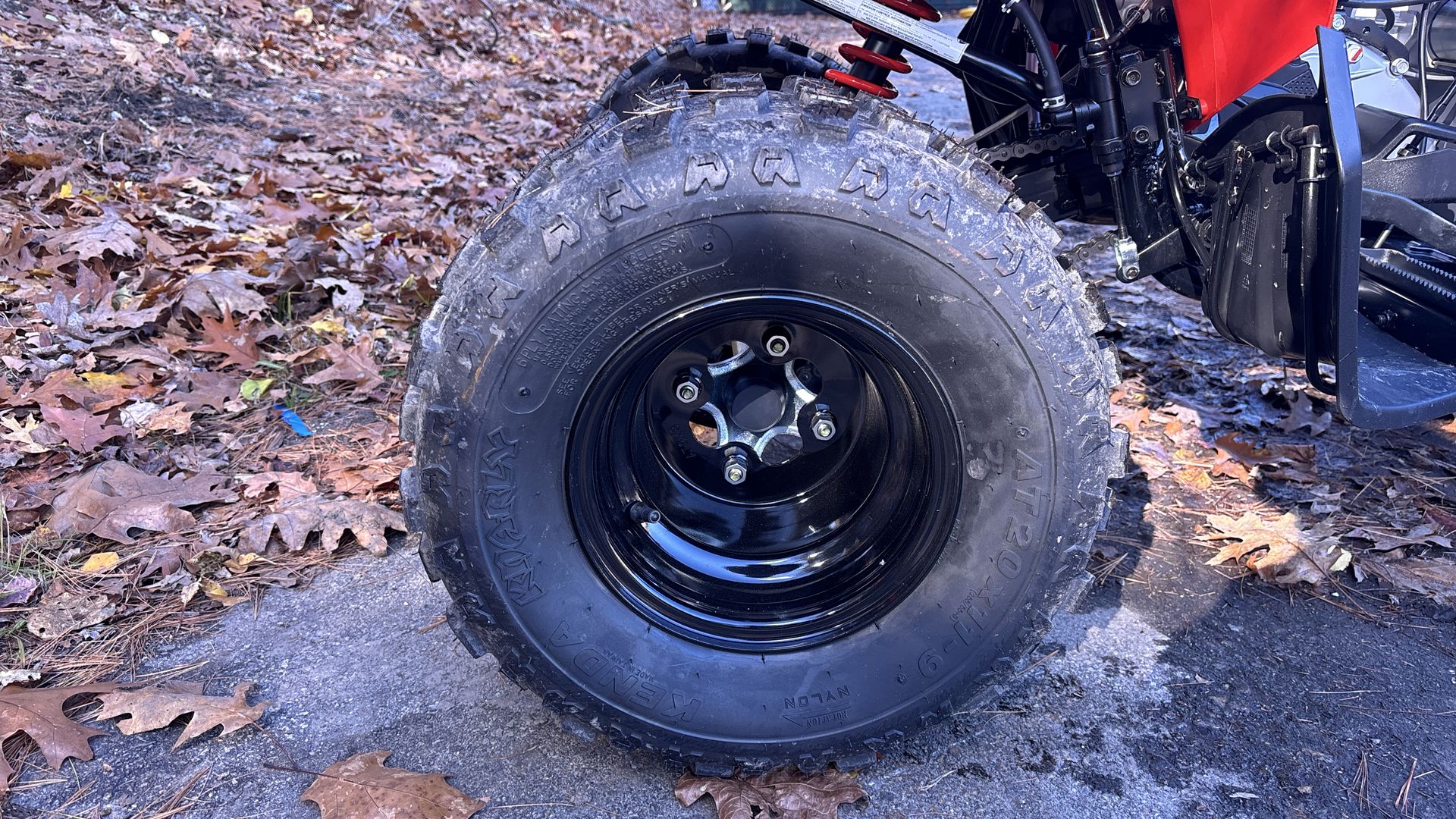

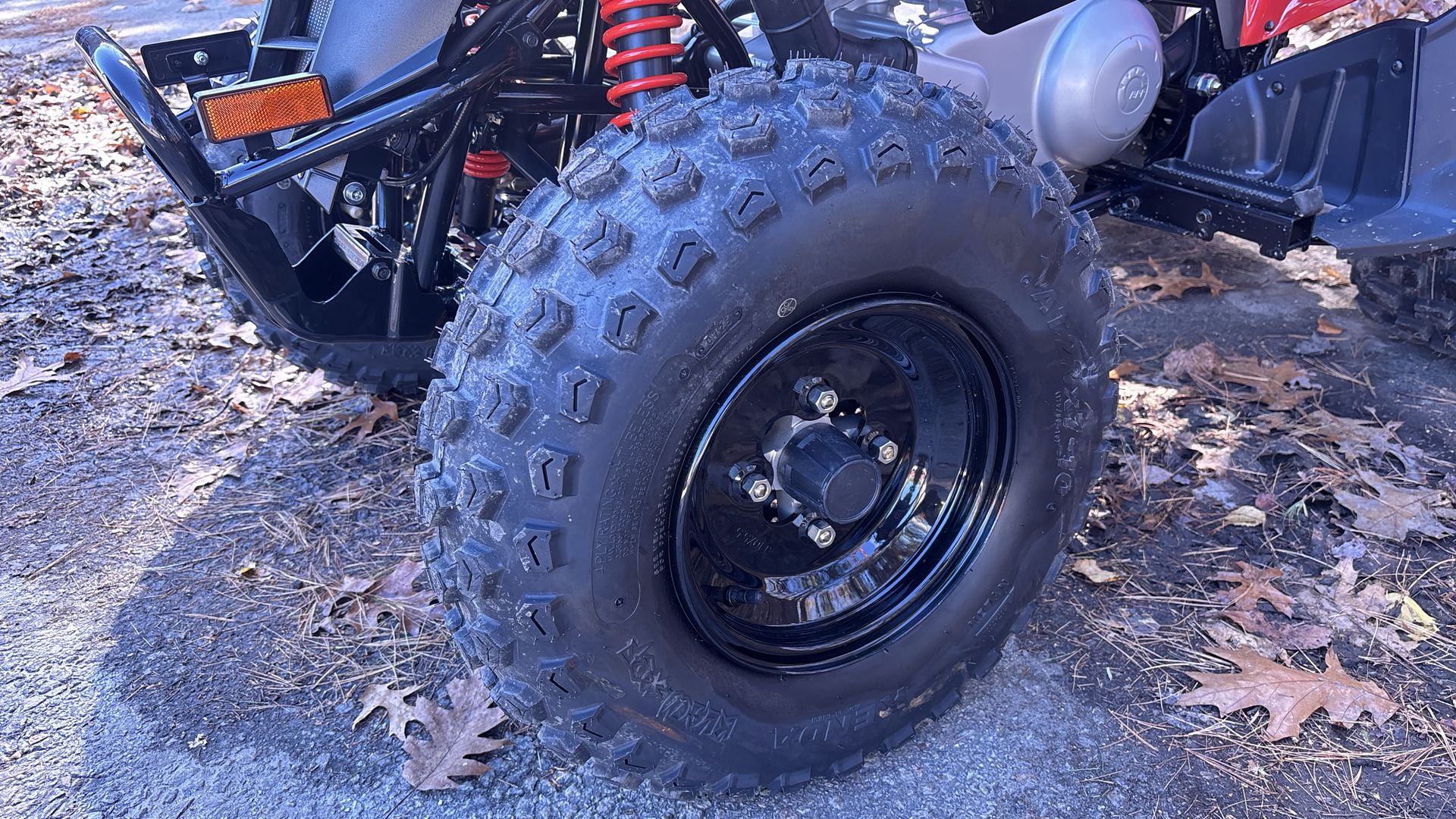

Front Tires: Kenda 22 x 7 - 10
Rear Suspension: Swing Arm
Rear Travel: 6.7 in. (170 mm)
Rear Brake Type: Hydraulic Disc
Rear Tires: Kenda 20 x 11 - 9
Frame: Steel
Dry Weight: 429 lb. (195 kg.)
Fuel Capacity: 3.3 gal. (12.5 L)
Ground Clearance: 4.5 in. (114 mm)
Machine Dimensions (LxWxH): L: 72 in. (1830 mm); W: 40.5 in. (1030 mm); H: 43.5 in. (1105 mm)
Wheelbase: 47 in. (1187 mm)
Drive Train: Continuously Variable (CVT)
