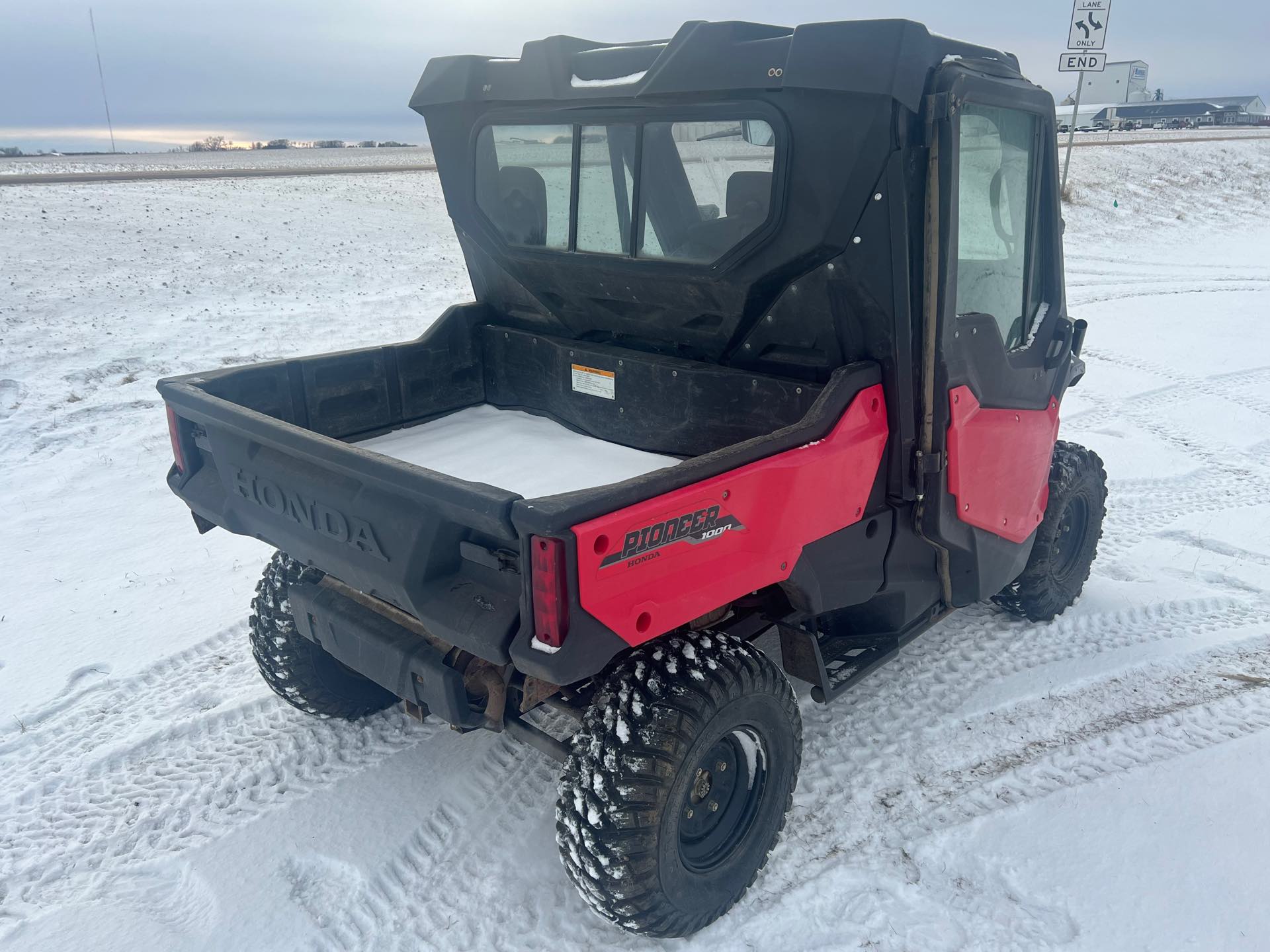

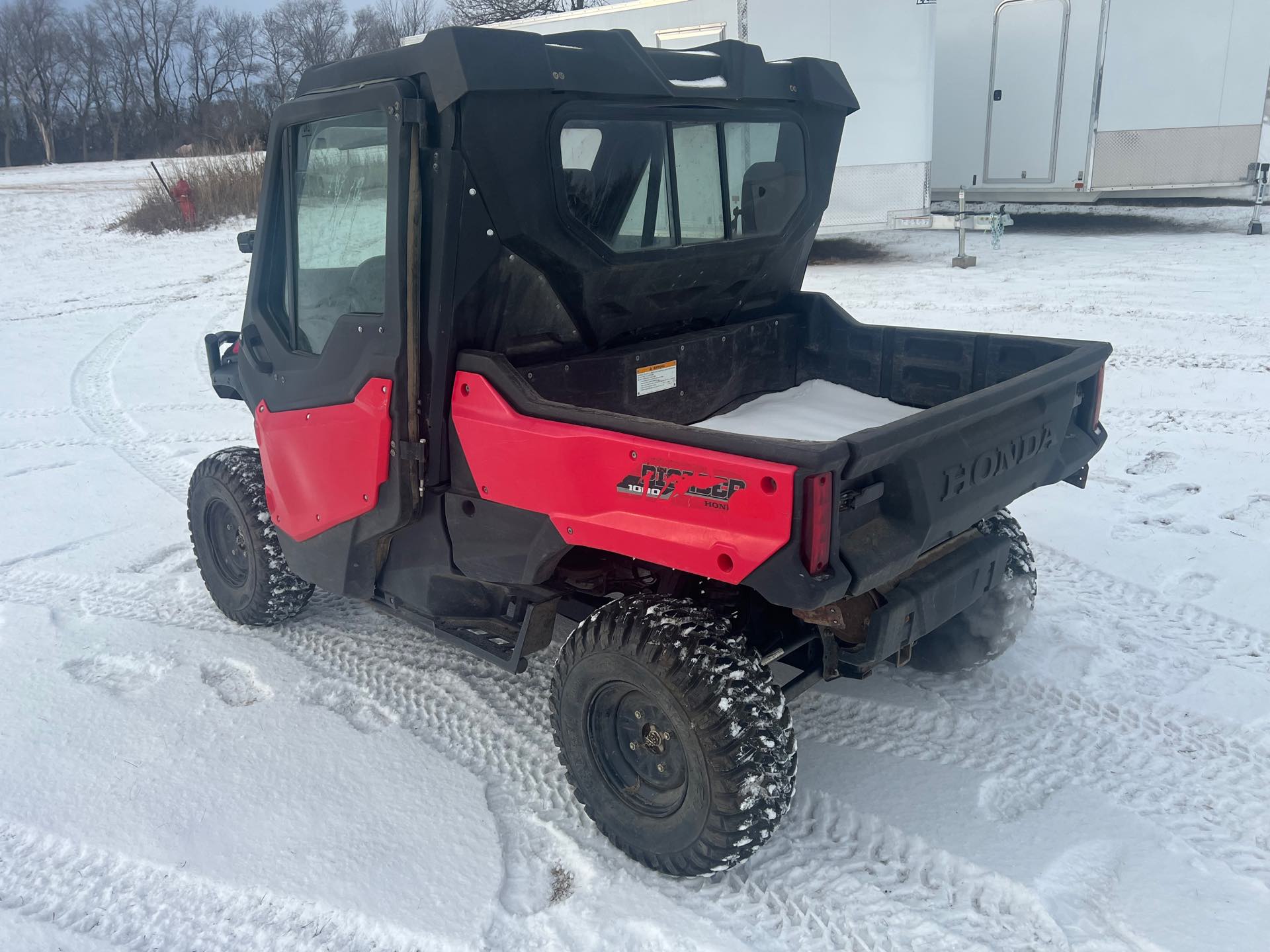

2017 Honda Pioneer 1000 With Cab

Engine Type: Twin-cylinder Unicam® four-stroke
Displacement: 999cc
Bore and Stroke: 92.0mm x 75.15mm
Cooling: Liquid
Compression Ratio: 10.0:1
Fuel System: Fuel Injection (PGM-FI), 44mm throttle body
Ignition: Full-transistorized with electronic advance
Front Suspension: Independent double-wishbone
Front Brakes: Dual 210mm hydraulic discs
Front Tire: 27 x 9-12
Rear Suspension: Independent double-wishbone
Rear Brakes: Dual 210mm hydraulic discs
Rear Tire: 27 x 11-12
Dry Weight: Curb Weight: 1526 lb.
Wheelbase: 80.2 in.
Front Travel: 10.6 in.
Rear Travel: 10 in.
Ground Clearance: 12.7 in.
Fuel Capacity: 7.9 gal., including 1.7 gal. reserve
Box Capacity: 49 states: 1000 lb.; CA models: 600 lb.
Towing Capacity: 2000 lb.
Transmission: Fully Automatic Dual Clutch Transmission (DCT) with six forward gears and Reverse. Four drive modes include 2WD, 4WD, Turf and Differential lock.
Drive System: Direct front and rear driveshafts
Colors: Red, Olive
