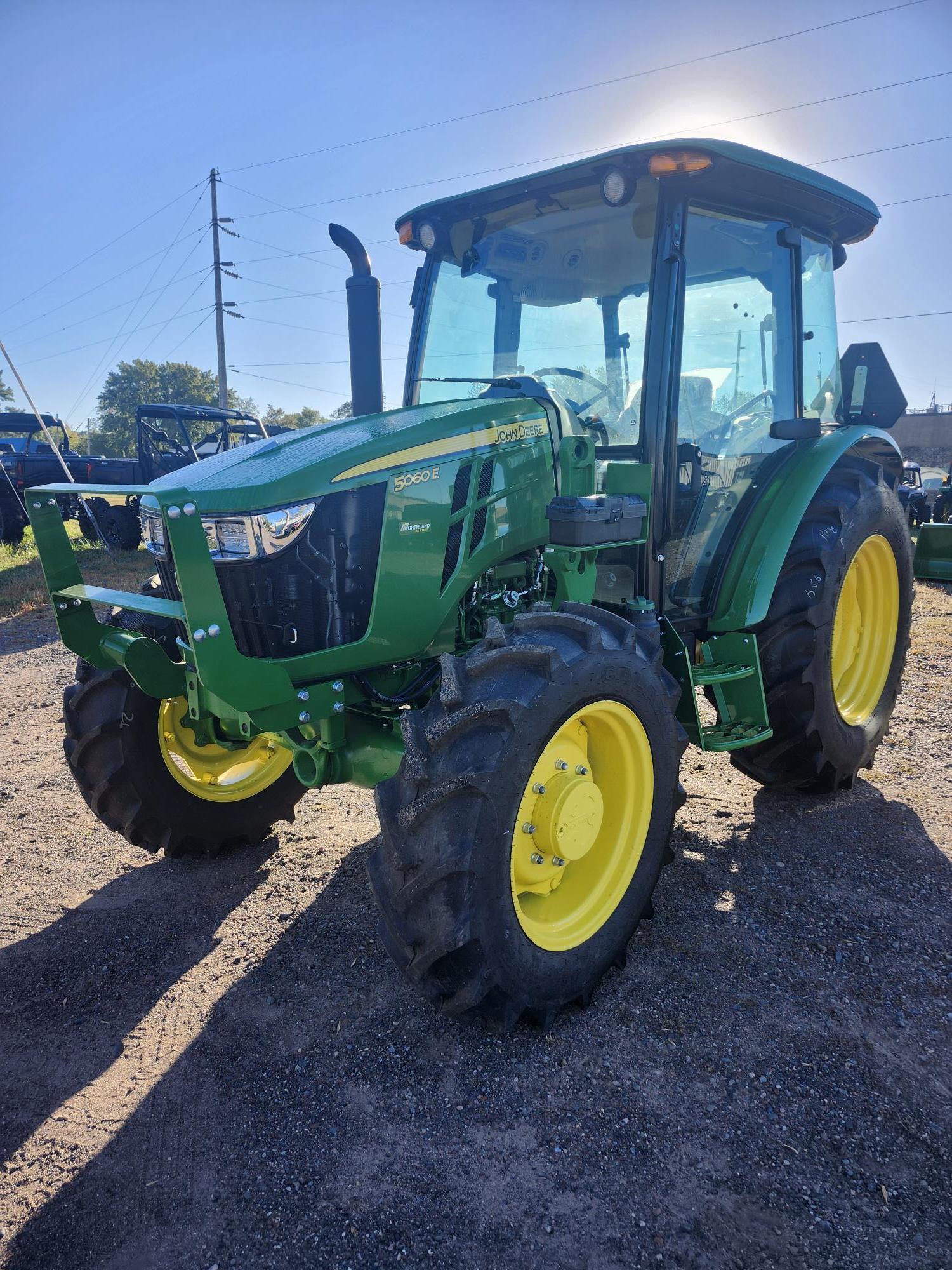

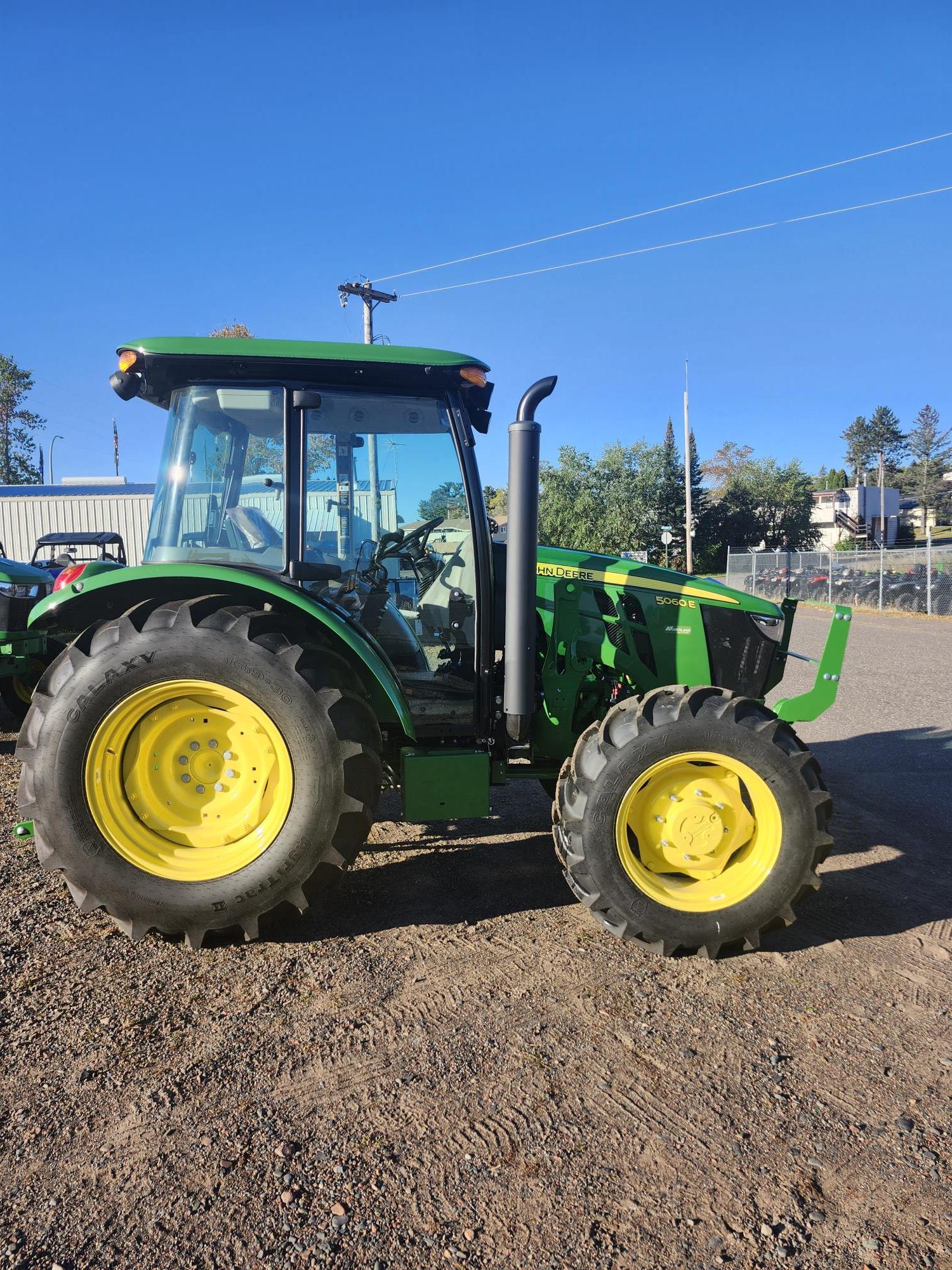

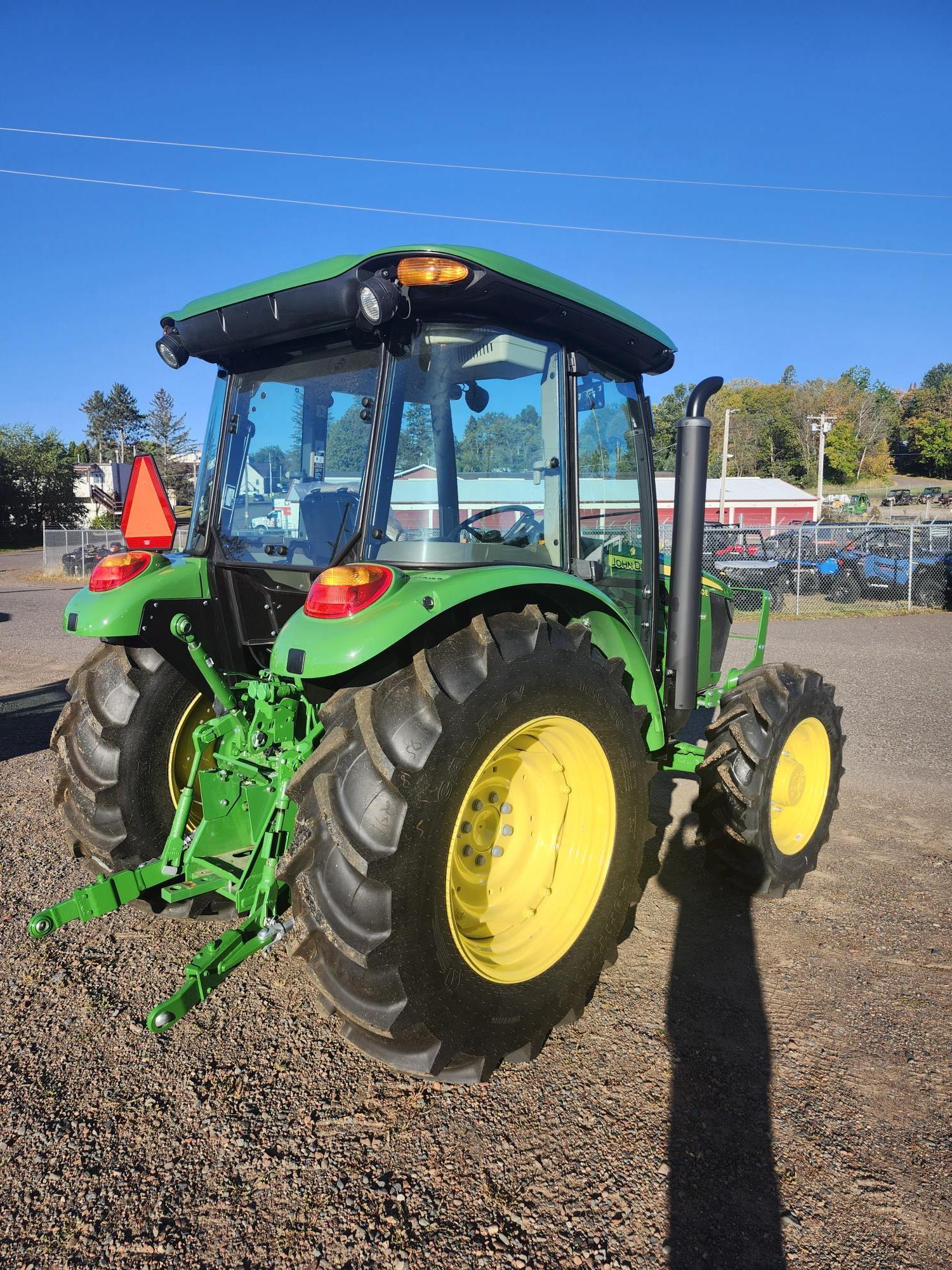

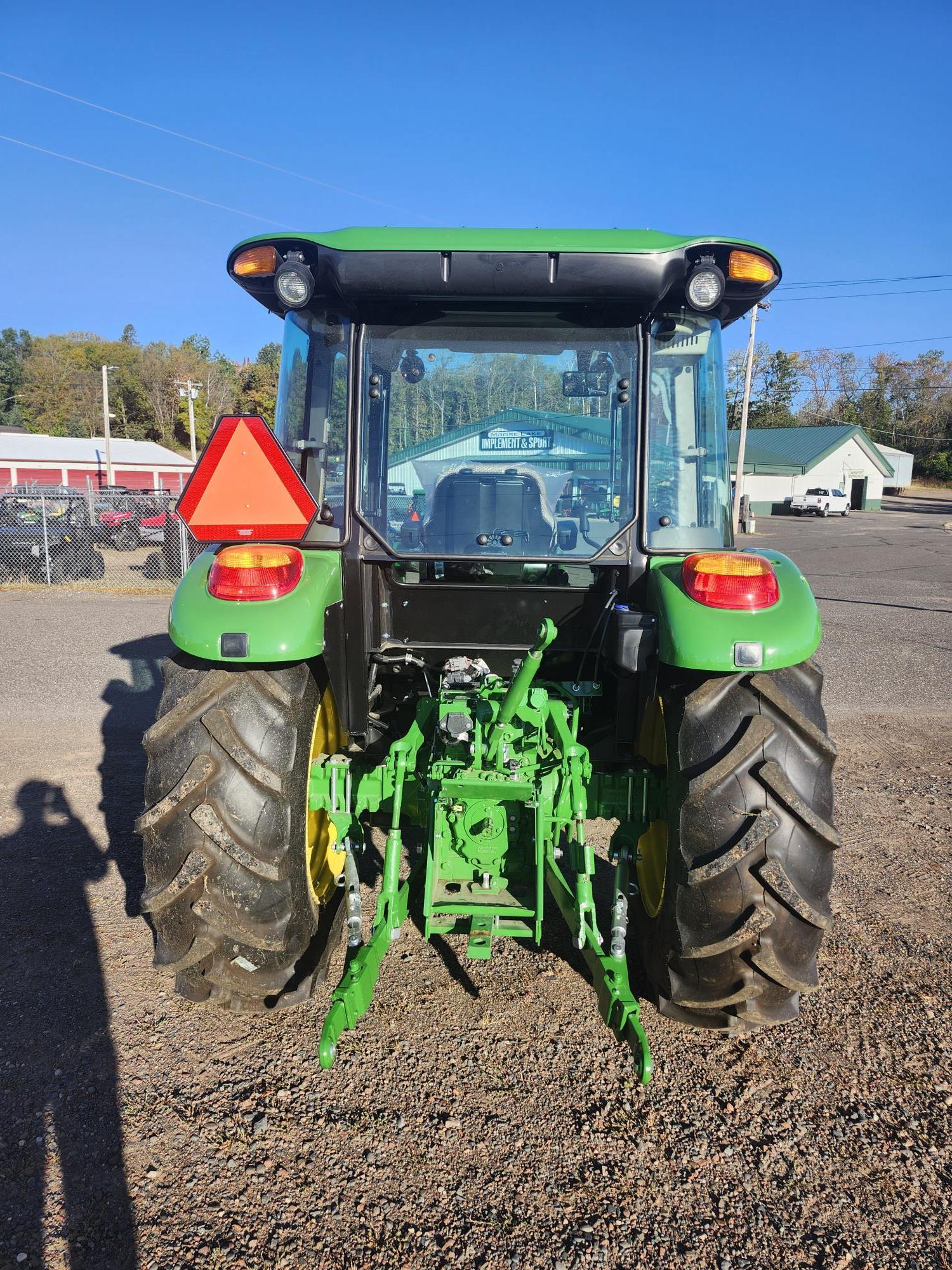

2024 John Deere 5060E Cab Utility Tractor

5060E Cab Utility Tractor
English Operator's Manual
PowrReverser™ 12F/12R Transmission with 540/540E PTO
Loader Prep Package
JDLink™ Modem
Standard Cab
Single Mechanical Stackable Rear SCV
Dual Mid Valves with Mechanical Joystick Control
16.9-30 In. 6PR R1 Bias
Mechanical Front Wheel Drive (MFWD)
12.4-24 In. 8PR R1 Bias Engine Manufacturer: John Deere PowerTech™ 3029 EWR
Engine Type: NJDXL02.9339
Horsepower: At 2100 rpm: 45 kW (60 hp)
PTO HP: At 2100 rpm: OOS 34 kW (45.6 PTO hp) (Cab 32 kW (42.9 PTO hp)
Rated RPM: 2100 rpm
Wheelbase: 2WD and MFWD: 2050 mm (80.7 in.)
Weight: 2WD OOS: 2470 kg (5445 lb.) (2WD Cab: 2939 kg (6480 lb.) (MFWD Open: 2685 kg (5919 lb.) (MFWD Cab: 3040 kg (6702 lb.)
Tire Size: 2WD: 14.9-28 R1 Bias (MFWD: 14.9-28 R1 Bias)
Fuel Capacity: Standard: 72.5 L (19 U.S. gal.)
Transmission: Standard: SyncShuttle™ 9F/3R (Optional: PowrReverser™ 12F/12R)
Brakes: Hydraulic wet disc
Hydraulics: Open Center
Engine Manufacturer: John Deere PowerTech™ 3029 EWR
Engine Type: NJDXL02.9339
Horsepower: At 2100 rpm: 45 kW (60 hp)
PTO HP: At 2100 rpm: OOS 34 kW (45.6 PTO hp) (Cab 32 kW (42.9 PTO hp)
Rated RPM: 2100 rpm
Wheelbase: 2WD and MFWD: 2050 mm (80.7 in.)
Weight: 2WD OOS: 2470 kg (5445 lb.) (2WD Cab: 2939 kg (6480 lb.) (MFWD Open: 2685 kg (5919 lb.) (MFWD Cab: 3040 kg (6702 lb.)
Tire Size: 2WD: 14.9-28 R1 Bias (MFWD: 14.9-28 R1 Bias)
Fuel Capacity: Standard: 72.5 L (19 U.S. gal.)
Transmission: Standard: SyncShuttle™ 9F/3R (Optional: PowrReverser™ 12F/12R)
Brakes: Hydraulic wet disc
Hydraulics: Open Center
