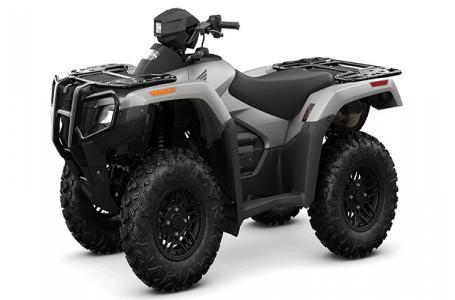

2025 Honda Rubicon / TRX520FA7S

Engine Type: Single-Cylinder
Displacement: 41.2 cu. in. (675 cc)
Bore x Stroke: Bore: 4.02 in. (102 mm); Stroke: 3.25 in. (82.6 mm)
Cylinders: 1
Engine Cooling: Liquid
Fuel System: Gas
Starting System: Electric / Pull
Front Suspension: Independent Double Wishbone
Front Travel: 6.9 in. (175.3 mm)
Front Brake Type: Dual Hydraulic Disc
Front Tires: Maxxis® 26 x 8-12
Rear Suspension: Independent Double Wishbone
Rear Travel: 8 in. (203.2 mm)
Rear Brake Type: Hydraulic Disc
Rear Tires: Maxxis® 26 x 10-12
Frame: Steel
Towing Capacity: 848 lb. (384.7 kg.)
Fuel Capacity: 4.4 gal. (16.7 L)
Ground Clearance: 9.5 in. (241.3 mm)
Machine Dimensions (LxWxH): L: 86.5 in. (2197.1 mm); W: 47.5 in. (1206.5 mm); H: 48 in. (1219.2 mm)
Wheelbase: 50.6 in. (1285.2 mm)
Drive Train: Automatic
Speedometer: Standard
Tachometer: Standard
Odometer: Standard
Engine Type: Single-Cylinder
Displacement: 31.6 cu. in. (518 cc)
Bore x Stroke: Bore: 3.78 in. (96 mm); Stroke: 2.81 in. (71.5 mm)
Cylinders: 1
Engine Cooling: Liquid
Fuel System: Gas
Starting System: Electric
Front Suspension: Independent Double Wishbone
Front Travel: 7.3 in. (185.4 mm)
Front Brake Type: Dual Hydraulic Disc
Front Tires: Maxxis® 25 x 8-12
Rear Suspension: Independent Double A-Arm
Rear Travel: 8.5 in. (215.9 mm)
Rear Brake Type: Hydraulic Disc
Rear Tires: Maxxis® 25 x 10-12
Frame: Steel
Towing Capacity: 1322 lb. (599.7 kg.)
Fuel Capacity: 3.9 gal. (14.8 L)
Ground Clearance: 9.7 in. (246.4 mm)
Machine Dimensions (LxWxH): L: 86 in. (2184.4 mm); W: 47.4 in. (1204 mm); H: 48.7 in. (1237 mm)
Wheelbase: 50.9 in. (1293 mm)
Drive Train: Automatic
Speedometer: Standard
Odometer: Standard
