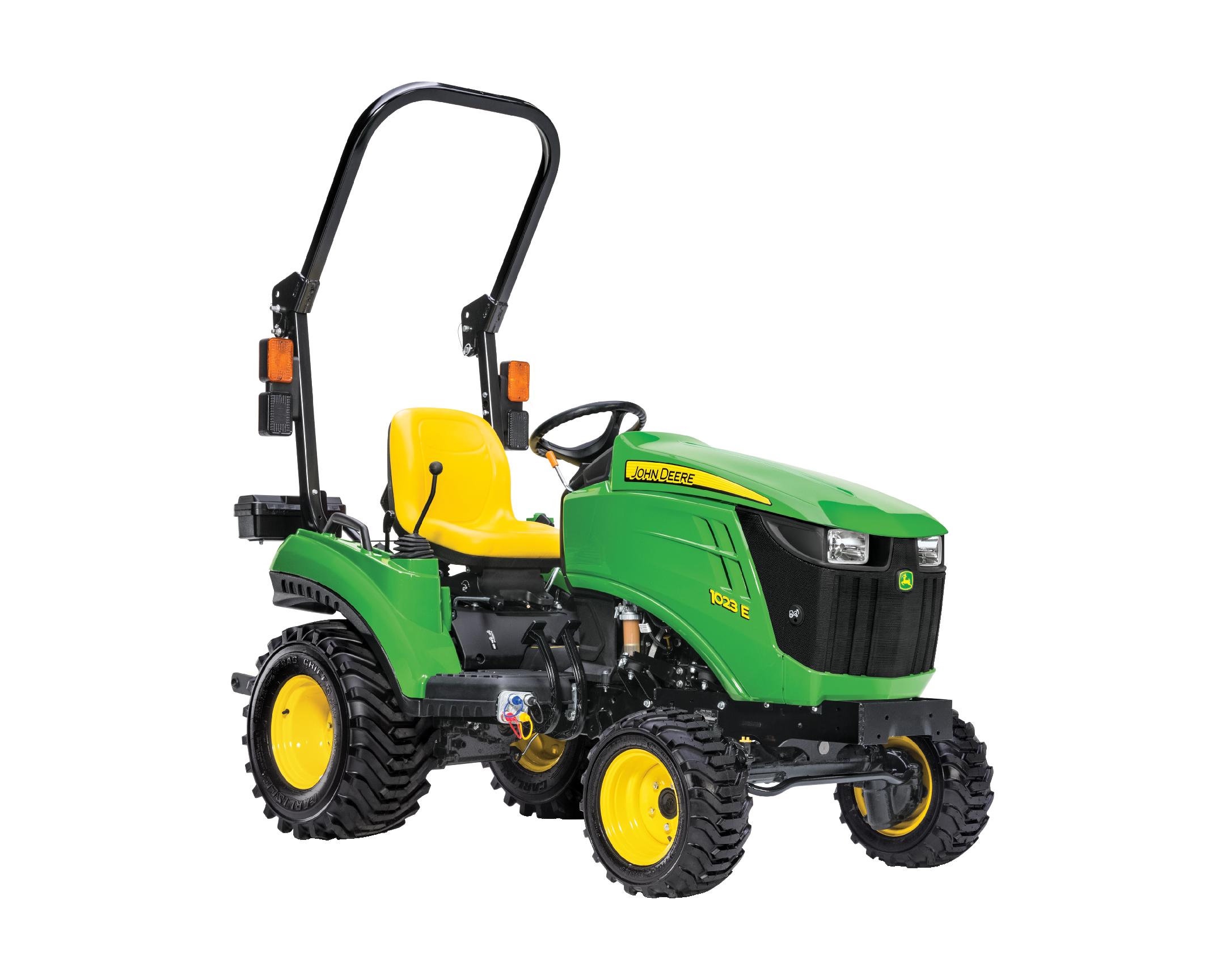

2024 John Deere 1023E Sub-Compact Utility Tractor (15 PTO hp)

1023E Sub-Compact Utility Tractor (15 PTO hp)
Factory Installed Loader with Bucket
Open Operator Station
Less Backhoe
Less iMatch™ Quick Hitch Category 1
26x12-12 (4PR, R4 Industial, 1 Position
18x8.50-10 (4PR, R4 Industrial, 1 Position) Engine Manufacturer: Yanmar®
Engine Type: 3TNM74F-NCJT
Horsepower: SAE J1995 rated power: 16 kW (21.5 hp)
PTO HP: 11.1 kW (14.9 hp)
Rated RPM: 3200 rpm
Bore and Stroke: 74 x 77 mm (2.91 x 3.03 in.)
Wheelbase: 1450 mm (57.1 in.)
Weight: Open station: 656 kg (1446 lb.)
Ground Clearance: 195 mm (7.7 in.)
Tire Size: Front: R3 Turf: 18x8.50-10 / R4: 18x8.5-10; Rear: R3 Turf: 26x12-12 (R4: 26x12-12)
Fuel System: Indirect injection
Fuel Capacity: 24 L (6.3 U.S. gal.)
Transmission: Hydrostatic - two range
Brakes: Wet disc (left-hand pedal)
Hydraulics: Open center
Engine Manufacturer: Yanmar®
Engine Type: 3TNM74F-NCJT
Horsepower: SAE J1995 rated power: 16 kW (21.5 hp)
PTO HP: 11.1 kW (14.9 hp)
Rated RPM: 3200 rpm
Bore and Stroke: 74 x 77 mm (2.91 x 3.03 in.)
Wheelbase: 1450 mm (57.1 in.)
Weight: Open station: 656 kg (1446 lb.)
Ground Clearance: 195 mm (7.7 in.)
Tire Size: Front: R3 Turf: 18x8.50-10 / R4: 18x8.5-10; Rear: R3 Turf: 26x12-12 (R4: 26x12-12)
Fuel System: Indirect injection
Fuel Capacity: 24 L (6.3 U.S. gal.)
Transmission: Hydrostatic - two range
Brakes: Wet disc (left-hand pedal)
Hydraulics: Open center
