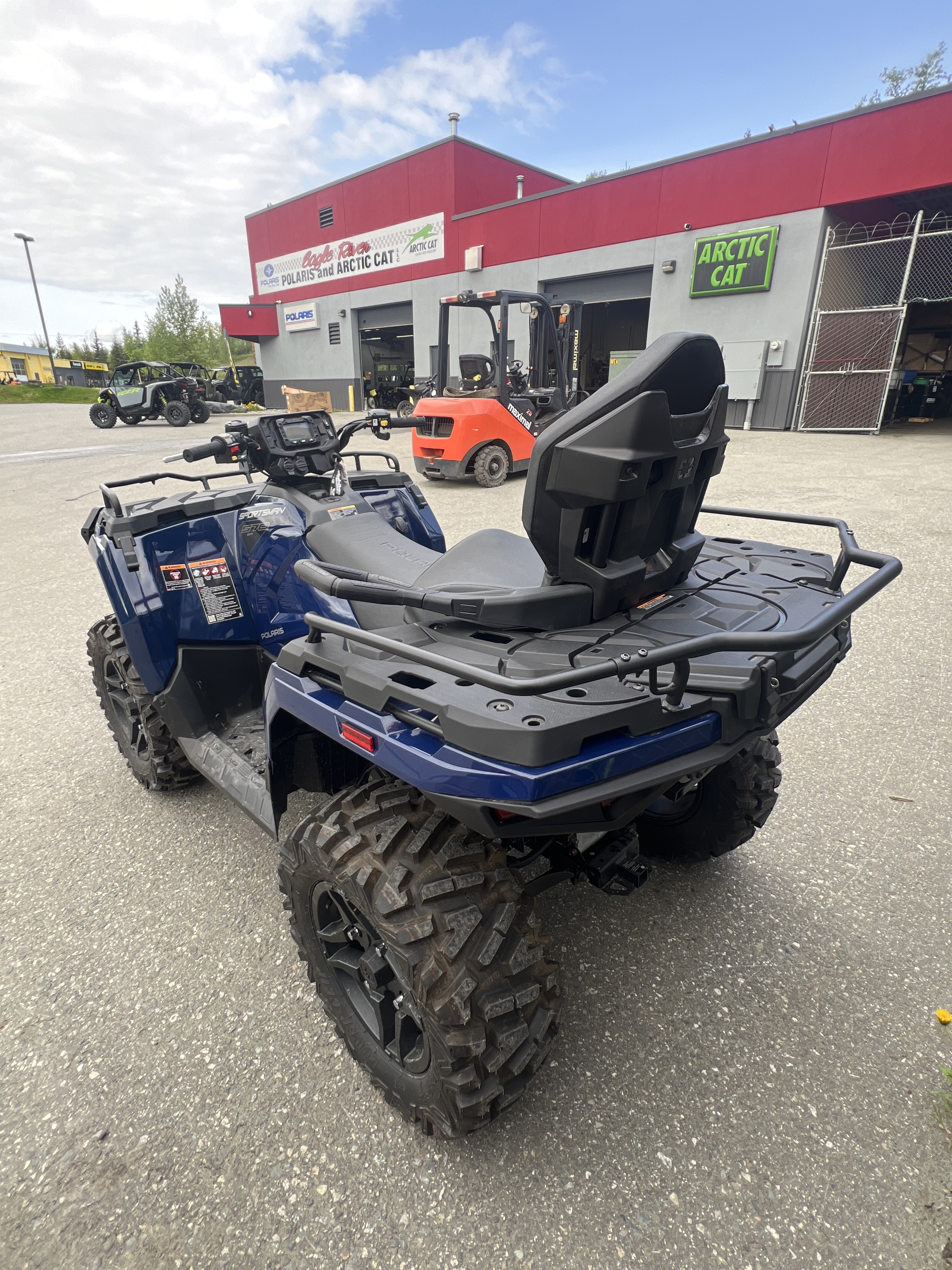

Winch in photo it 3500lb with Synthetic Rope - $524 additional Engine Type: Single-Cylinder
Displacement: 34.6 cu. in. (567 cc)
Bore x Stroke: Bore: 3.9 in. (99 mm); Stroke: 2.9 in. (73.6 mm)
Cylinders: 1
Engine Cooling: Liquid
Fuel System: Gas
Starting System: Electric
Front Suspension: McPherson Strut
Front Travel: 8.2 in. (208 mm)
Front Brake Type: Hydraulic Disc
Front Tires: Duro: 26 x 8-14
Rear Travel: 9.5 in. (241 mm)
Rear Suspension: Independent Double A-Arm
Rear Brake Type: Hydraulic Disc
Rear Tires: Duro: 26 x 10-14
Frame: Steel
Dry Weight: 879 lb. (399 kg.)
Towing Capacity: 1350 lb. (612 kg.)
Fuel Capacity: 6.75 gal. (25.5 L)
Ground Clearance: 11.5 in. (290 mm)
Machine Dimensions (LxWxH): L: 91 in. (2311 mm); W: 48 in. (1212 mm); H: 59 in. (1500 mm)
Wheelbase: 56 in. (1432 mm)
Drive Train: Continuously Variable (CVT)
Speedometer: Standard
Tachometer: Standard
Odometer: Standard
