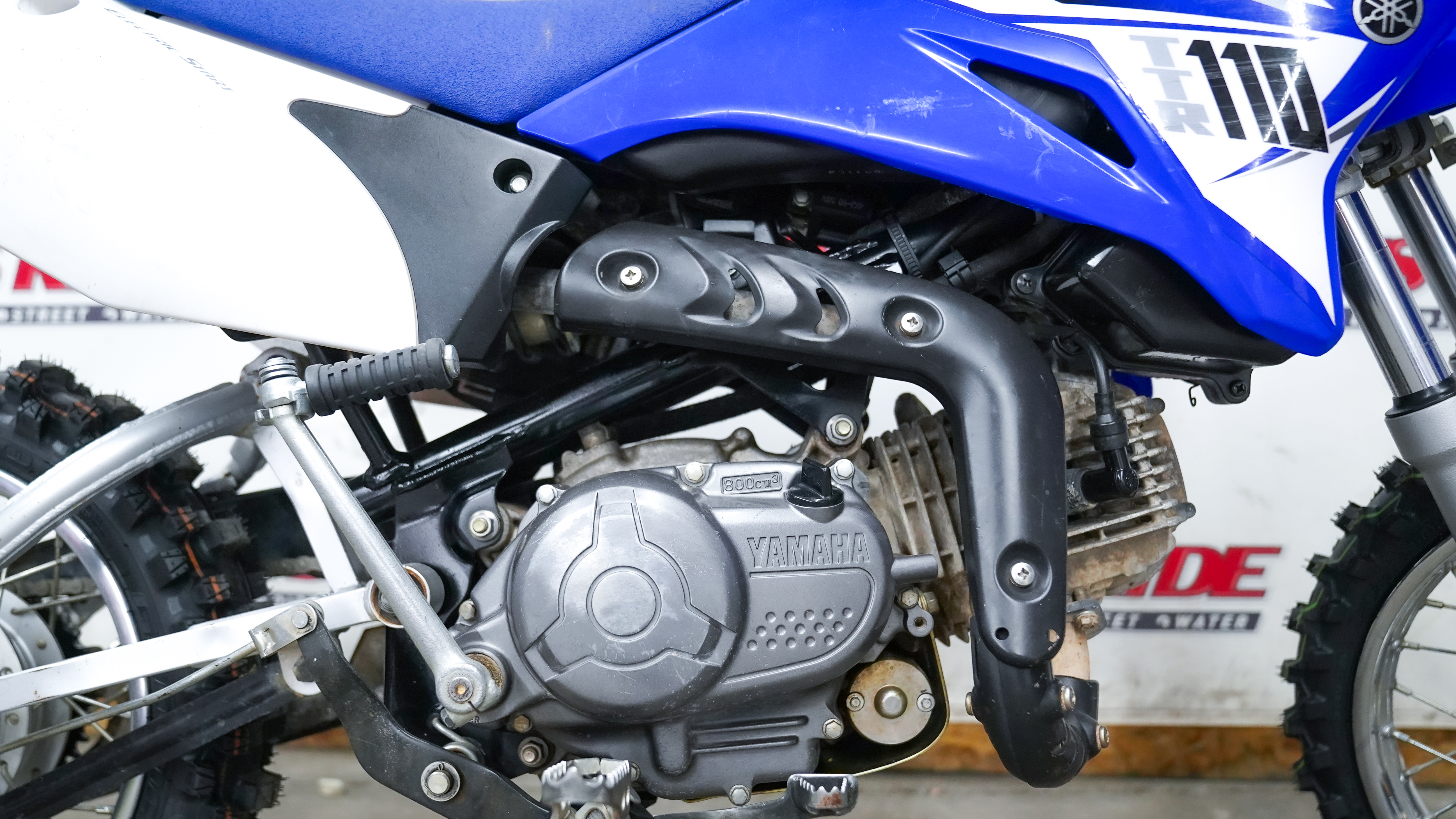

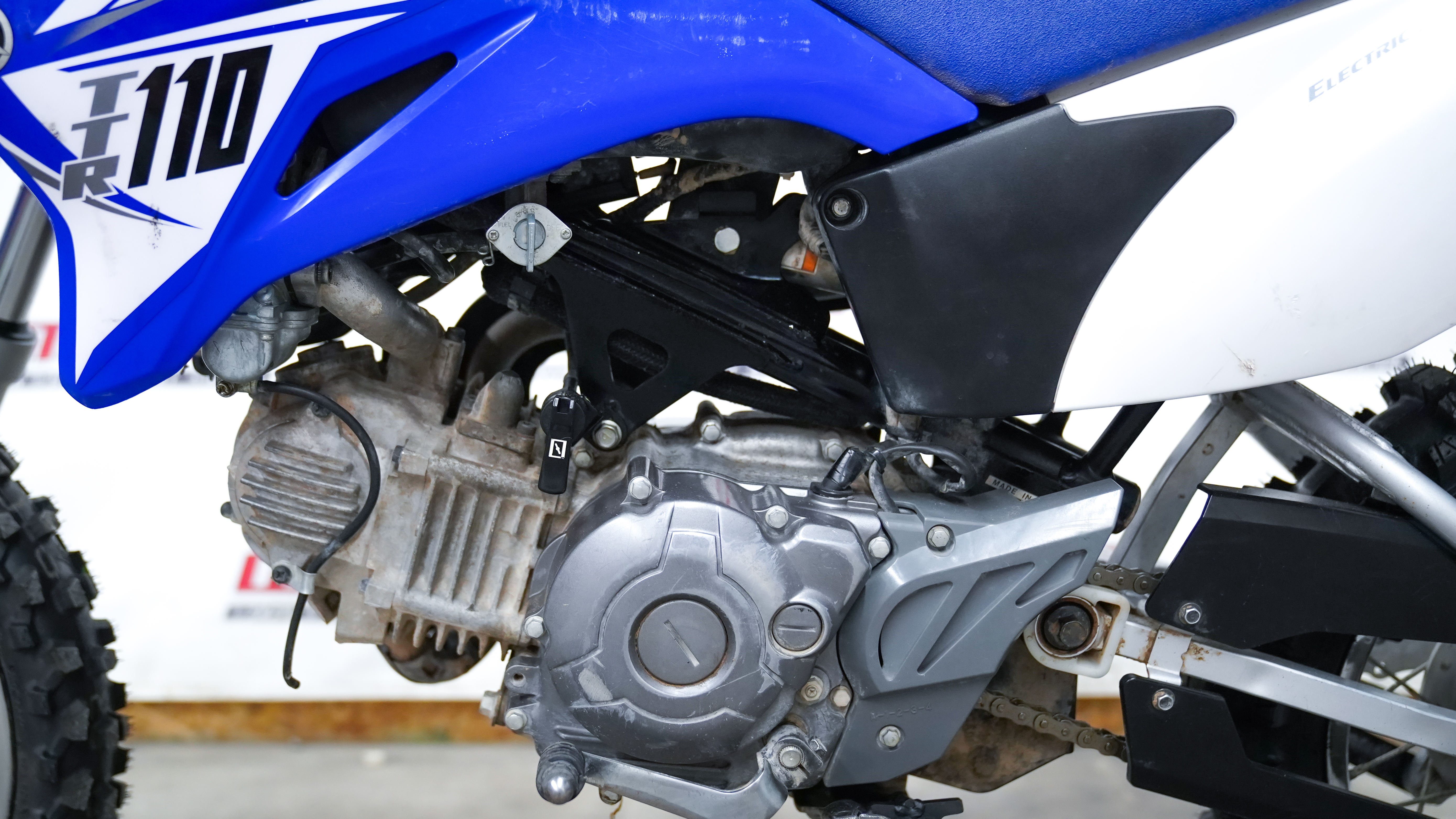

Engine Type: 4-stroke, SOHC
Displacement: 110 cc
Bore and Stroke: 51.0mm x 54.0mm
Cooling: Air
Compression Ratio: 9.3:1
Fuel System: Mikuni® VM16 carburetor
Ignition: CDI
Front Suspension: 31mm Telescopic fork, coil spring/oil damper, 4.5-in travel
Front Brakes: 95mm drum
Front Tire: 2.50-14-4PR
Rear Suspension: Swingarm (Monocross®), coil spring/gas-oil damper, 4.3-in travel
Rear Brakes: 110mm drum
Rear Tire: 3.00-12-4PR
Dry Weight: Curb Weight: 159 lb.
Fuel Capacity: 1.0 gal.
Wheelbase: 42.5 in.
Ground Clearance: 7.1 in.
Seat Height: 26.4 in.
Transmission: Constant-mesh 4-speed/wet, multiple disc
Final Drive: Chain drive
Colors: Team Yamaha Blue/White
