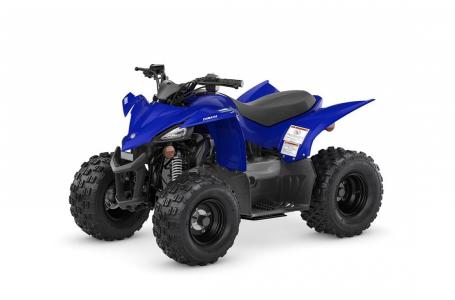

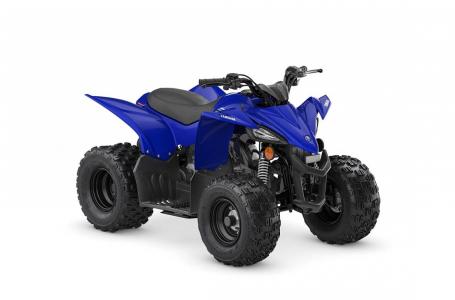

2022 Yamaha YF05ZNL

Engine Type: SOHC, 2-valve, single
Displacement: 49.4cc
Bore x Stroke: 39 mm x 41.4 mm
Engine Cooling: Air
Fuel System: Mikuni VM12 carburetor
Starting System: Electric with auxiliary kick starter
Front Travel: 60 mm (2.4 in.)
Front Suspension: Single I-Arm
Front Brake Type: Dual drums
Front Tires: AT16 x 6.5-7
Rear Travel: 51 mm (2 in.)
Rear Suspension: Adjustable, single shock swing arm
Rear Brake Type: Single drum / Lockable hand lever parking brake
Rear Tires: AT16 x 7-7
Dry Weight: Curb Weight: 100 kg (220 lb.)
Fuel Capacity: 5.6 L (1.2 Imp. gal)
Ground Clearance: 88 mm (3.5 in.)
Machine Dimensions (LxWxH): 1250 mm (49.2 in.) x 820 mm (32.3 in.) x 770 mm (30.3 in.)
Wheelbase: 830 mm (32.7 in.)
Final Drive: "O" ring chain
Transmission: Fully automatic CVT
Colors: Yamaha Racing Blue, White
